    Prev1 in. 60 Degree Gusset
    Next1 in. 150 Degree Gusset

    1 in. 120 Degree Gusset

    Be the first to review this product

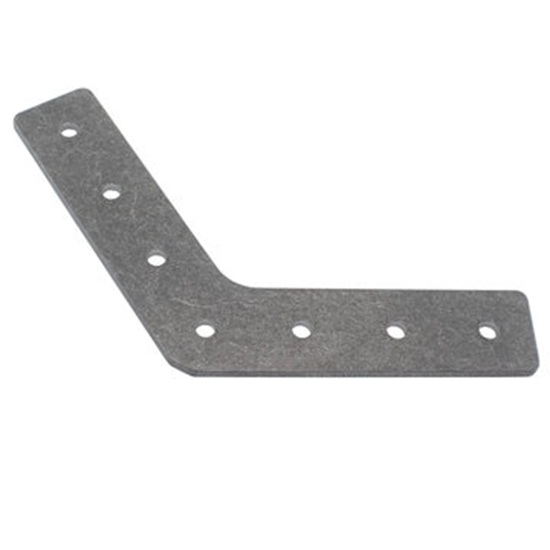

    We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.



    On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.



    Specifications

    • Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
    • Material: 6061-T6 Aluminum
    • Thickness: 0.125 in





    MFR Part #: am-4163
    $5.00
