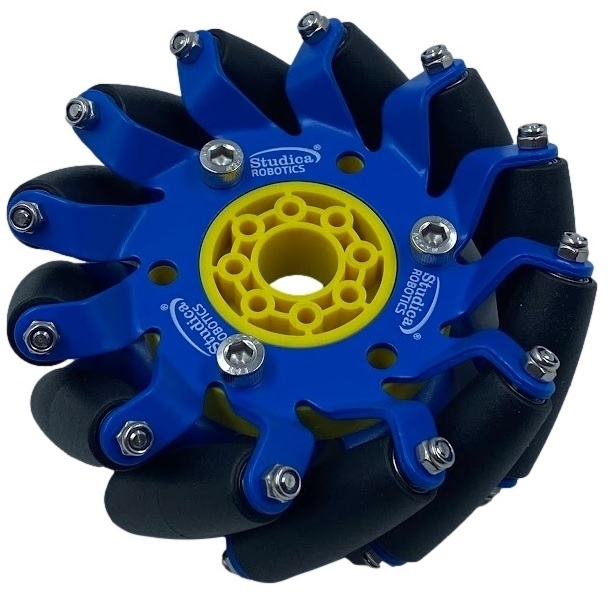

    100mm Slim Mecanum Wheel Set (Bearing Rollers, 2 left, 2 right)

    The 100mm Slim Mecanum Wheel Set comes with 2 left and 2 right, and steel ball bearings. With blue steel frame and black rollers.  The wheel is comprised of 12 black rollers and is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.



    Rollers are mounted with steel ball bearings, making the roll more fluent.



     Wheel Specifications:

    • Diameter:                                                100mm
    • Width:                                                     38m
    • Number of Rollers:                                 12
    • Number of Plates for each wheel:          2
    • Body material:                                        Steel
    • Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
    • Spacer Material:                                     Delrin

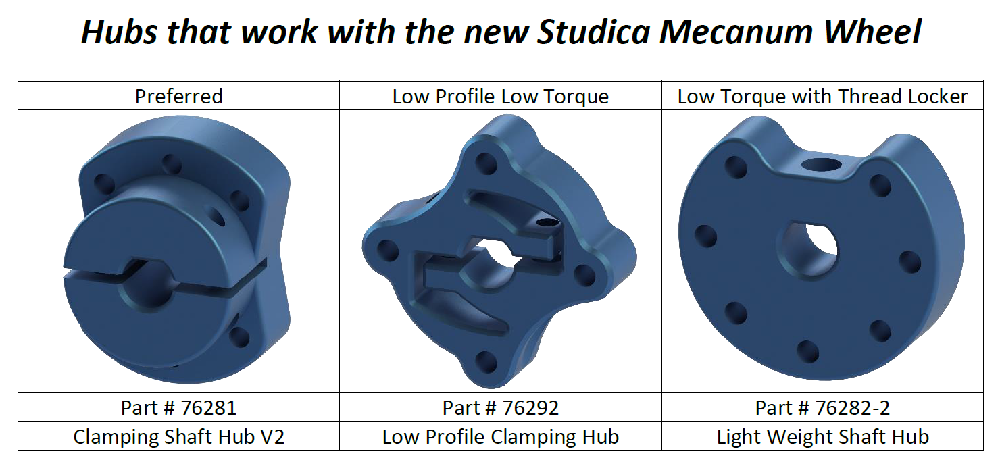

    The following hubs (purchased seperately) will work with these wheels



    MFR Part #: 76246
    $189.00
    Availability: 346 in stock

    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent
