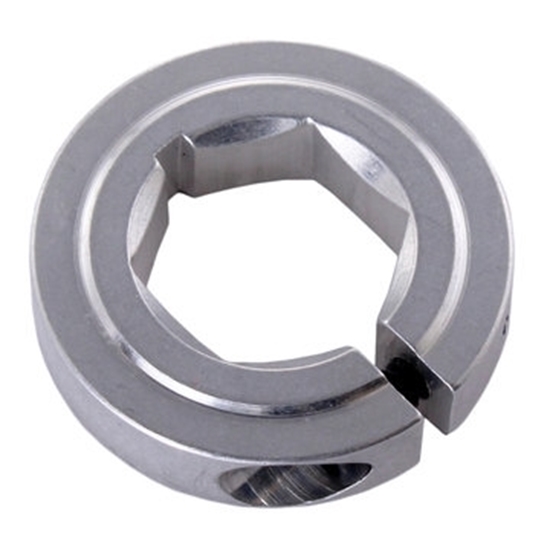

1/2 in. Hex Collar Clamps, Silver Thin (0.25in) - 1 part

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound

Must be ordered in mulitples of 25

Specifications:

• Material: Steel
• Coating: Zinc plated
• Thread: 1/4-20
• Width across hex: 7/16"

This item can only be purchased in multiples of 25

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

This new custom designed collar clamp has been designed specifically with FIRST Robotics Competition teams in mind. This product is Out of Stock until Mid March

Whether you are building an elite custom drivetrain or a championship manipulator, you need your components to stay where they're supposed to. These lightweight spacers come in 3/8", 1/2", and 5 mm hex bores to accommodate the most common shaft types They can also be used on round shafts and bolts (5mm is great for #10 hardware!). If you need to space a lot grab some 1" spacers. If you need ultimate precision pick up some 0.063" spacers. Not sure which spacers you need? Keep a handful of all six sizes in your shop and never go hungry for spacers again!

These spacers are molded in black polycarbonate, a tough, crack resistant material that FIRST teams are familiar with. These spacers should resist stress cracking. If polycarbonate isn't rugged enough for your high load application or you need custom length spacers, check out our Aluminum Hex Spacer Extrusion.

Specifications

• Inside Diameter: 0.375 in. Hex, 0.50 in. Hex, 5 mm Hex
• Length: 0.063 in., 0.125 in., 0.188 in., 0.250 in., 0.375 in., 0.50 in., 1.00 in.
• Material: Polycarbonate
• Outside Diameter: 0.787 in. Round
• Weight: Up to 0.014 lbs

This is the "500EX Hex Hub" the bore is a 1/2" Hex Hole. It is a slightly different version of the 500 Hex Hub. It is manufactured differently, as it is extruded. Also, there is a 1.124" diameter boss on each side of the hub flange, providing a location for 1.125" bore flat sprockets. Are you having a hard time keeping your sprocket concentric with your hub? This hub is the trick.

This is the hub featured in the 2014 and 2015 Kit of Parts Drive Chassis and fits all AndyMark wheels.

Specifications:

• Material: 6063 Aluminum
• Bore: 1/2" Hex
• Bolt Pattern: 0.204" diameter holes, evenly spaced on a 1.875" diameter bolt circle
• Outside diameter: 2.25"
• Weight: .088

This is a heavy-duty compression lug from BURNDY for 06 AWG wire. This compression log can be easily crimped with the Cable Lug Crimping Tool.

Specifications

• Gauge: 06 AWG
• Hole Size For Stud: 0.25 in.
• Material: Copper
• Overall Length: 2.03 in.
• Tongue Width: 0.48 in.
• Weight: 0.01 lbs
• Wire Strip Length: 1.18 in.

This is a 1/2 in. hex bore bearing that is shielded. This Ball Bearing is a great way to make things spin fast!

The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

Product Usage:
Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
• Diameter: 2 in., 4 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
• Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU, Polycarbonate
• Weight: 0.23lb, 0.1lb
• Width: 1 in.

Documents

Layout Print(s)

am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

am-3156 2IN 8mm Stealth Wheel REV3.PDF

am-3436 2in 375Hex Stealth Wheel REV3.PDF

am-3155 2in 500Hex Stealth Wheel REV3.PDF

am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

am-2648 4IN 8mm Stealth Wheel REV5.PDF

am-3435 4in 375Hex Stealth Wheel REV3.PDF

am-2647 4in 500Hex Stealth Wheel REV3.PDF

CAD File(s)

am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

am-3156 2IN 8mm Stealth Wheel.STEP

am-3436 2IN 375Hex Stealth Wheel REV2.STEP

am-3155 2IN 500Hex Stealth Wheel REV2.STEP

am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

am-2647 4inWheel 500 Hex REV2.STEP

am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

am-2648 4inWheel 8mm Hub REV2.STEP
