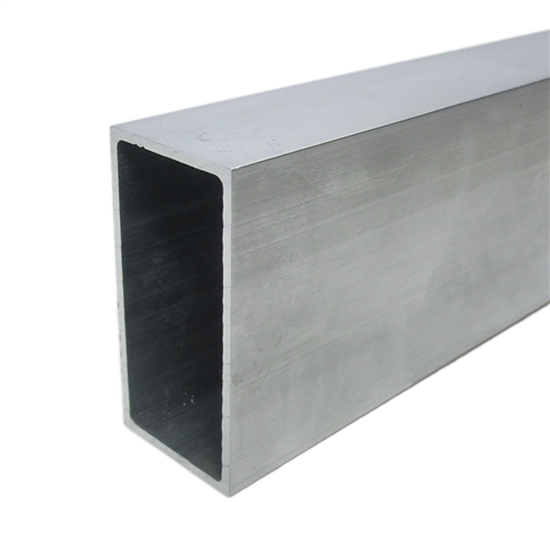

    2 x 1 x 0.063 Aluminum Box Extrusion, 6ft

    This sharp-cornered 6061-T6 aluminum extrusion is a robust and lightweight solution for custom robot frames and mechanism construction.

    Specifications:

    • Length: 72" (+/- 1")
    • Wall Thickness: 0.062"
    • Exterior Corners: Sharp
    • Material: 6061-T6 Aluminum
    • Weight: 2.4 Pounds
    MFR Part #: am-3214-6
    $49.00
    Availability: 17 in stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent
    Customers who bought this item also bought

    10-32 Nylock Nut

    #am-1042
    $0.08
    (In stock)

    This item can only be purchased in multiples of 25



    Specifications:

    • Material: Steel
    • Coating: Zinc Plated
    • Thread: #10-32
    • Thickness: 0.249"
    • Thread: Fine
    • Thread Size: 32
    • Type: Nylon Insert Lock Nut
    • Wrench Size: 3/8"

    10-32 Nylock Jam Nut

    #am-1063
    $0.11
    (325 In stock)

    Must be ordered in mulitples of 25



    3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet

    #am-1226
    $0.30

    This item can only be purchased in multiples of 25



    Product Overview



    These blind steel rivets are a perfect, strong choice for creating frames when using our 1in. Gussets paired with up to .125" wall aluminum tubing. These steel rivets won't let you down when you need them most!

    Specifications

    • Diameter: 3/16 in.
    • Drill Size For Hole: #11
    • Finish: Zinc
    • Grip Range: 0.126-0.25 in.
    • Head: Buttonhead
    • Hole Size: 0.192-0.196 in.
    • Length: 0.45 in.
    • Mandrel Material: Steel
    • Material: Steel
    • Rivet Style: Blind
    • Weight: 0.0094

    10-32 x 0.5 in. Socket Head Cap Screw

    #am-1002
    $0.35

    This item can only be purchased in multiples of 25



    #10-32 x 0.5 in. long Socket Head Cap Screw



    Specifications

    • Finish: Zinc
    • Head: Socket Cap
    • Length: 0.5 in.
    • Material: Steel
    • Thread: 10-32
    • Weight: 0.1 lbs

    Bearing, 1/2 inch Hex Bore, Flanged, (FR8ZZ-HexHD)

    #am-2986
    $8.00
    (87 In stock)

    This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

    This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.


    Specifications:

    • Inside diameter: 0.500-0.502 inch hex bore
    • Outside diameter: 1.125 inch
    • Flange thickness: 0.062 inch
    • Overall thickness: 0.312 inch
    • Weight: 0.05 pound

    1/4-20 Nylock Nut

    #am-1015
    $0.11
    (500 In stock)

    Specifications:

    • Material: Steel
    • Coating: Zinc plated
    • Thread: 1/4-20
    • Width across hex: 7/16"
