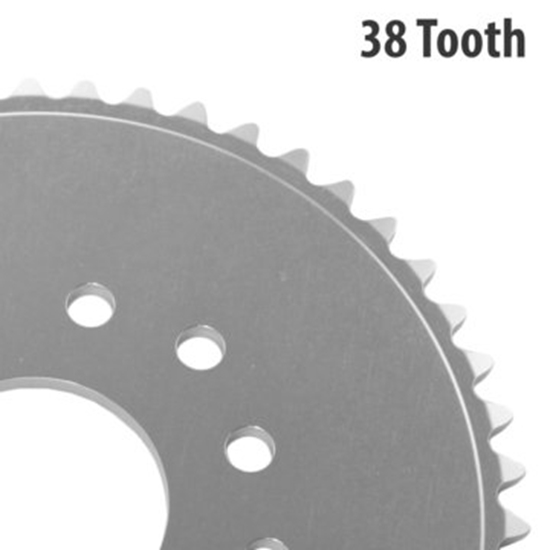

    25 Series Bearing Bore Plate Sprockets - 38 Tooth

    8 different offerings of our 25 Series Plate Sprockets. These are perfect for meshing with roller chain and finally getting that-thing-that-you-need-to-spin moving!



    These aluminum sprockets work perfectly with any of our 6 hole hubs and mesh with #25 roller chain.  They also work with other build systems that use a 2 in. bolt circle for mounting. The larger versions also have a mounting pattern compatible with 2x1 box tube usefull for making arms.

    MFR Part #: am-4782
    $21.00
    7 in stock

    Note: Despite the prints, at this time tooth alignment to holes is not controlled on these sprockets.

    Part NumberTooth CountBorePitch Diameter (in.)Outside Diameter (in.)
    am-4781321.125 in2.5512.691
    am-4782381.125 in3.0273.169
    am-4783441.125 in3.5043.647
    am-4784501.125 in3.9814.125
    am-4785561.125 in4.4594.603
    am-4786621.125 in4.9365.081
    am-4787681.125 in5.4135.559
    am-4788741.125 in5.8916.036

    Specifications

    • Bolt Circle: 0.201 in. diameter on bolt circle of 1.875 in. diameter
    • Chain Series: 25
    • Inside Diameter: 1.125 in.
    • Material: 7075 Aluminum
    • Thickness: 0.118 in.
