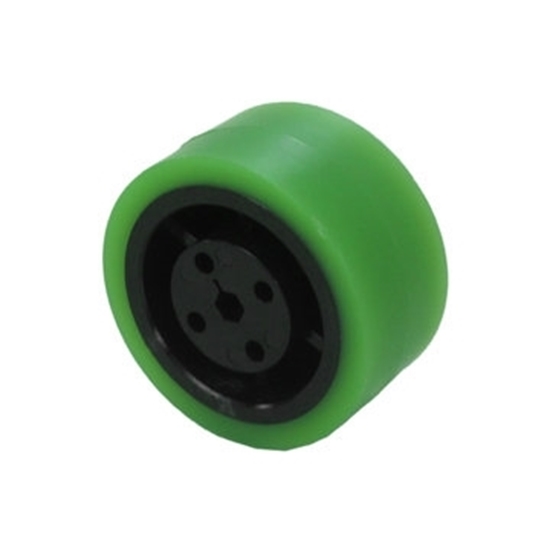

    2" Stealth Wheel 5mm Hex, Green, 35 Durometer (am-3664_green)

    The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

    Product Usage:
    Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

    Specifications

    • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
    • Diameter: 2 in., 4 in.
    • Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
    • Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
    • Material: TPU, Polycarbonate
    • Weight: 0.23lb, 0.1lb
    • Width: 1 in.

    Documents

    Layout Print(s)

    am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

    am-3156 2IN 8mm Stealth Wheel REV3.PDF

    am-3436 2in 375Hex Stealth Wheel REV3.PDF

    am-3155 2in 500Hex Stealth Wheel REV3.PDF

    am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

    am-2648 4IN 8mm Stealth Wheel REV5.PDF

    am-3435 4in 375Hex Stealth Wheel REV3.PDF

    am-2647 4in 500Hex Stealth Wheel REV3.PDF

    CAD File(s)

    am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

    am-3156 2IN 8mm Stealth Wheel.STEP

    am-3436 2IN 375Hex Stealth Wheel REV2.STEP

    am-3155 2IN 500Hex Stealth Wheel REV2.STEP

    am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

    am-2647 4inWheel 500 Hex REV2.STEP

    am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

    am-2648 4inWheel 8mm Hub REV2.STEP

    MFR Part #: am-3664_green
    $9.00
    $10.42
    15 in stock
