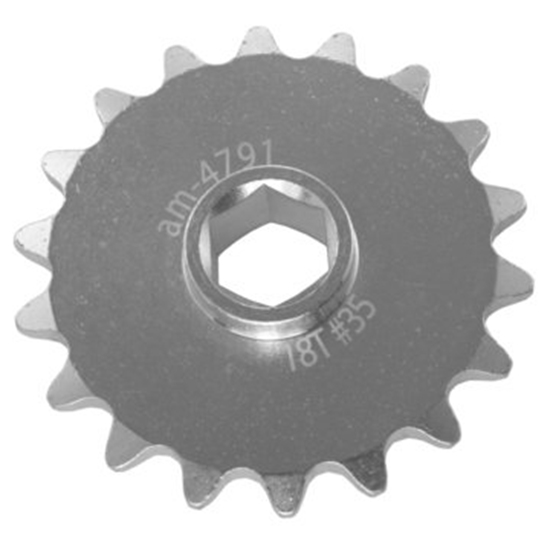

    35 Series Symmetrical Hub Sprockets 500Hex, 18 Tooth

    11 different offerings of our 35 Series Plate Sprockets. These are perfect for meshing with roller chain and finally getting that-thing-that-you-need-to-spin moving!



    These Aluminum sprockets work perfectly with any of our 6 hole hubs and mesh with #35 roller chain.



    Specifications

    • Bolt Circle: 0.206 in. diameter holes on a 1.875 in. diameter circle
    • Chain Series: 35
    • Inside Diameter: 1.1245 in.
    • Material: 6061 Aluminum
    • Thickness: 0.168 in.
    MFR Part #: am-4791
    $24.00
    Availability: 8 in stock
