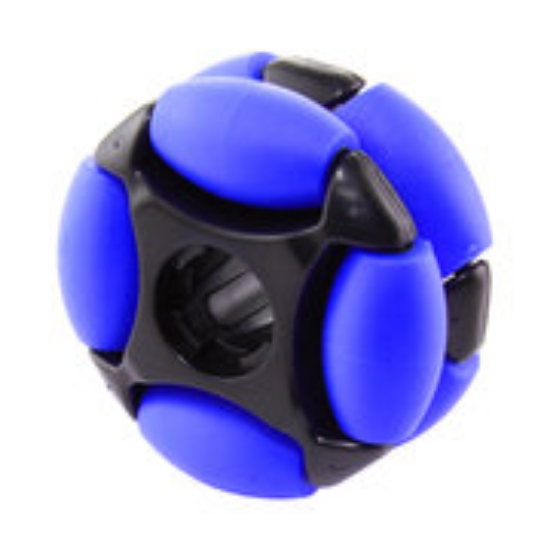

35mm Dualie Omni Wheel Bore: 8mm Round

Φ29.0mm*16.0mm thick
6*M3 thread tapping through
(including 2*M3 thread for M3 SHCS)
Φ6.0mm D hole
AL6061-T6

• For 5.5mm nuts
• CRV material
• heat treatment
• surface matt chrome plated
• 100mm exposure shank
• socket head cold heading treatment

• Used with M3 screws

The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 40mm
• Length - 96mm
• Step File

Use this 10-cell, 12-volt rechargeable pack to bring long-lasting power to TETRIX^® motors and electronics. This 3,000 mAh NiMH pack features a built-in, 20-amp replaceable fuse for safety.

(THIS BATTERY IS FTC LEGAL)

The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 14mm
• Width - 48mm
• Length - 240mm
• Hole pattern - 5
• Step File

Standoffs can be used to space parallel plates, channel, brackets, etc.

Specifications:

• Material: 6061-T6 Aluminum
• Thread: M3
• Length: 42mm
• Step File

Standoffs can be used to space parallel plates, channel, brackets, etc.

Specifications:

• Material: 6061-T6 Aluminum
• Thread: M3
• Length: 52mm
• Step File

The 100mm Slim Mecanum Wheel Set comes with 2 left and 2 right, and steel ball bearings. With blue steel frame and black rollers.  The wheel is comprised of 12 black rollers and is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.

Rollers are mounted with steel ball bearings, making the roll more fluent.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                     38m
• Number of Rollers:                                 12
• Number of Plates for each wheel:          2
• Body material:                                        Steel
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Delrin
