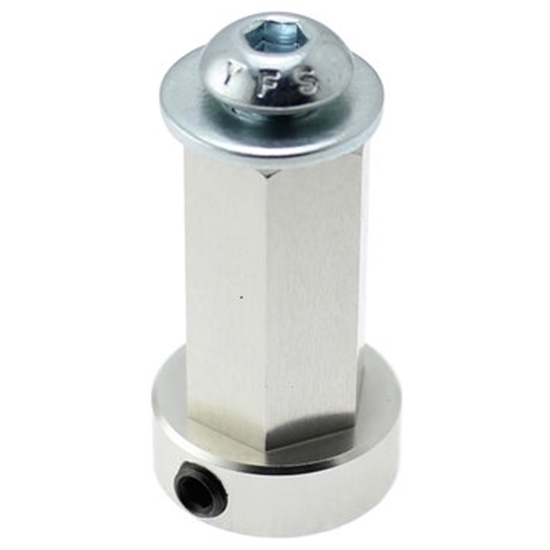

6 mm D to 0.5 in. Hex-Shaft Adapter

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound

These adapters are intended to be a high strength solution to adapt the Falcon Spline to any product that has a 1/2 in hex bore. This product includes the correct size washers to retain items along the hex shaft, as well as a thread-patch 8-32 screw to be used in conjunction with spacers included with the Falcon 500 motor to retain motion hardware.

Do you need an odd number of chain links? Tired of dealing with cotter pins in old school "half links"?  Love using the DarkSoul or ARC chain tool for everything? These are the links for you!

These links add one and a half links to a run of chain making for easier cleaner alternative to half links. Use a chain splicing tool or two master links to install them. No more lost matches from a failed half link!

Specifications

• Chain Size: #25, #35
• Material: Steel
• Pitch: 0.25 in., 0.375 in.
• Style: Roller Chain

PRE-ORDER Only shipping January 2023

Φ20.0mm*8.0mm thick
2*M3 thread for M3 SHCS
on the clamp side
Φ6.0mm D hole
AL6061-T6

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

You asked, we listened! These 3" diameter HD (heavy-duty) solid-core Compliant Wheels are intended for manipulating objects where you need a little 'give' in your intake system. These wheels deform out of the way to allow rigid objects to be manipulated easily. This makes for high-performance intakes and internal conveyors. These wheels do not require the use of expensive hubs to be driven, thanks to their integrated high strength polycarbonate hubs - which are made from the same mold that creates our Hex Molded Spacers.

Different durometer ratings give each wheel unique characteristics. Green compliant wheels (35A durometer) are the softest and most compliant around objects, while maroon (45A) blue (50A) and black (60A) wheels are increasingly firm.

Specifications

• Bore: 0.375 in. Hex, 0.5 in. Hex, 5 mm Hex
• Color: Green, Black, Blue, Black
• Core Material: Polycarbonate
• Diameter: 3 in.
• Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
• Tread Material: TPU
• Weight: 0.12 lbs
• Overall Width: 1 in.

Documents

Layout Print(s)

am-3946 3IN 375Hex Compliant Wheel REV3.PDF

am-3945 3IN 500Hex Compliant Wheel REV3.PDF

am-4537 3in 5mm Hex Molded Compliant Wheel.PDF

CAD File(s)

am-3946 3IN 375Hex Compliant Wheel REV 3.STEP

am-3945 3IN 500Hex Compliant Wheel REV 3.STEP

am-4537 3in 5mm Hex Molded Compliant Wheel.STEP

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Please note maroon wheels are only intended for use in FTC. If more powerful motors are used to drive it the spokes may fail.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
• Diameter: 4 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
• Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU, ⠀Polycarbonate
• Maximum RPM: 3000-9000
• Weight: 0.228 - 0.269 Lbs
• Width: 1 in.

Documents

Layout Print(s)

am-3562 4IN 375Hex Compliant Wheel REV3.PDF

am-3563 4IN 8mm Compliant Wheel REV4.PDF

am-3480 4IN 500Hex Compliant Wheel REV3.PDF

am-4538 4IN 5mm Hex Compliant Wheel.PDF

CAD File(s)

am-3562 4IN 375Hex Bore Compliant Wheel REV2.STEP

am-3563 4IN 8mm Round Compliant Wheel REV2.STEP

am-3480 4IN 500Hex Bore Compliant Wheel REV2.STEP

am-4538 4IN 5mm Hex Compliant Wheel.STEP

Guide(s)

4 inch Compliant Wheel Expansion.pdf

Made from 3mm thick heavy 6061-T6 Aluminum, the L Bracket is 48mm x 48mm and is used outside the U Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 240mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.043kg
• Step File

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 330mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile
