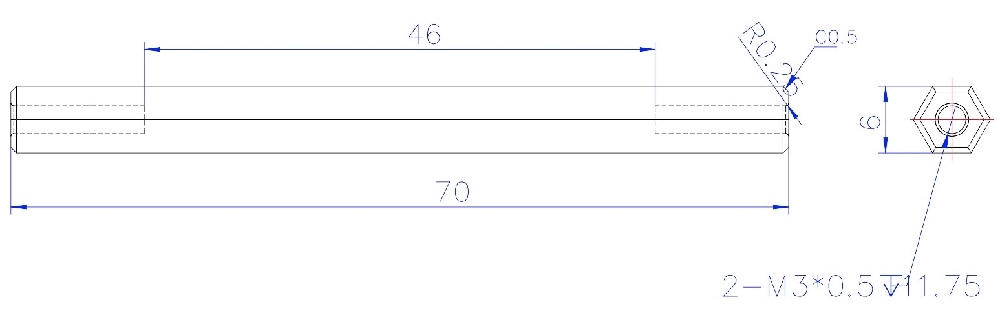

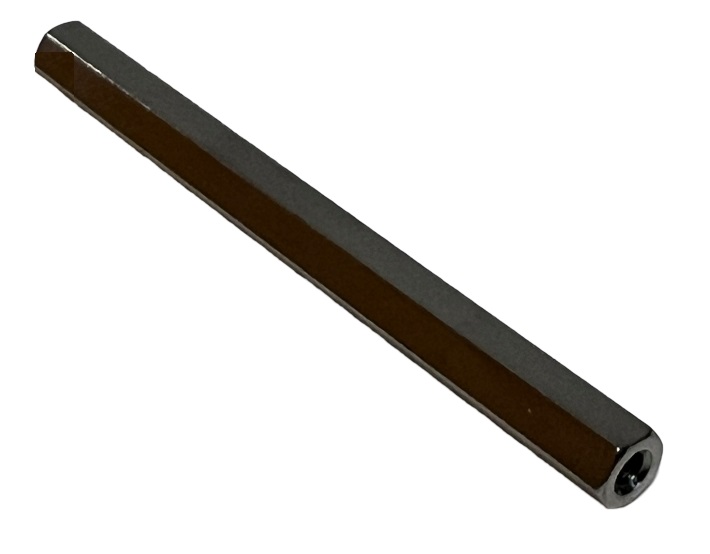

6mm x 70mm Hex-Shaft (6 pack)

The Studica Slide Rail is made of light weight aluminum, is 24mm wide, and is perfect for building a multi-stage slide system. Closed length is 288m, with a 180mm stroke, creating a 470mm extended length.

• Width: 24mm
• Height: 7.2mm
• Length: 288mm
• Stroke: 180mm
• Extendended length: 468mm
• Step file

The Studica Slide Rail is made of light weight aluminum, is 24mm wide, and is perfect for building a multi-stage slide system. Closed length is 384m, with a 240mm stroke, creating a 530mm extended length.

• Width: 24mm
• Height: 7.2mm
• Length: 384mm
• Stroke: 240mm
• Extendended length: 530mm
• Material: 6061 Aluminum
• Step file

These are all of our 9 mm wide 5 mm pitch HTD synchronous timing belt offerings. All of these belts are a composite of flexible rubber with a fiberglass tensile member throughout. Synchronous timing belts, also known as a toothed belt or synchronous belt, are designed to eliminate slippage and keep any number of objects rotating at a constant rate. We offer genuine Gates brand belts, AndyMark branded belts, as well as lower-cost generic brand belts.

Current Belt Offerings

Parts are organized by the following scheme: (Tooth Count - Trade Number - AndyMark part number)

AndyMark Brand Belts

• 30T - 150-HTD-5M-9 - am-5209_30T
• 35T - 175-HTD-5M-9 - am-5209_35T
• 40T - 200-HTD-5M-9 - am-5209_40T
• 45T - 225-HTD-5M-9 - am-5209_45T
• 50T - 250-HTD-5M-9 - am-5209_50T
• 55T - 275-HTD-5M-9 - am-5209_55T
• 60T - 300-HTD-5M-9 - am-5209_60T
• 64T - 320-HTD-5M-9 - am-5209_64T
• 65T - 325-HTD-5M-9 - am-5209_65T
• 70T - 350-HTD-5M-9 - am-5209_70T
• 75T - 375-HTD-5M-9 - am-5209_75T
• 80T - 400-HTD-5M-9 - am-5209_80T
• 85T - 425-HTD-5M-9 - am-5209_85T
• 90T - 450-HTD-5M-9 - am-5209_90T
• 91T - 455-HTD-5M-9 - am-5209_91T
• 93T - 465-HTD-5M-9 - am-5209_93T
• 95T - 475-HTD-5M-9 - am-5209_95T
• 100T - 500-HTD-5M-9 - am-5209_100T
• 105T - 525-HTD-5M-9 - am-5209_105T
• 106T - 530-HTD-5M-9 - am-5209_106T
• 110T - 550-HTD-5M-9 - am-5209_110T
• 115T - 575-HTD-5M-9 - am-5209_115T
• 120T - 600-HTD-5M-9 - am-5209_120T
• 121T - 605-HTD-5M-9 - am-5209_121T
• 125T - 625-HTD-5M-9 - am-5209_125T
• 130T - 650-HTD-5M-9 - am-5209_130T
• 135T - 675-HTD-5M-9 - am-5209_135T
• 136T - 680-HTD-5M-9 - am-5209_136T
• 140T - 700-HTD-5M-9 - am-5209_140T
• 145T - 725-HTD-5M-9 - am-5209_145T
• 150T - 750-HTD-5M-9 - am-5209_150T
• 152T - 760-HTD-5M-9 - am-5209_152T
• 160T - 800-HTD-5M-9 - am-5209_160T
• 167T - 835-HTD-5M-9 - am-5209_167T
• 170T - 850-HTD-5M-9 - am-5209_170T
• 180T - 900-HTD-5M-9 - am-5209_180T
• 190T - 950-HTD-5M-9 - am-5209_190T
• 200T - 1000-HTD-5M-9 - am-5209_200T
• 225T - 1125-HTD-5M-9 - am-5209_225T
• 250T - 1250-HTD-5M-9 - am-5209_250T
