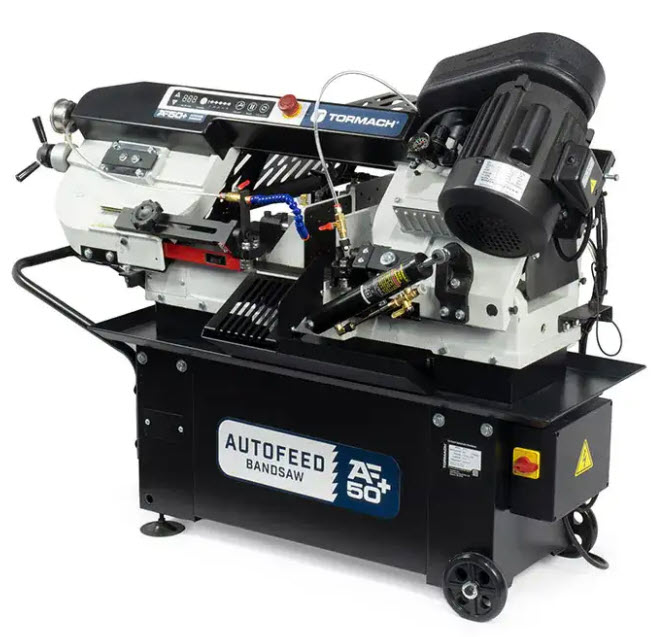

    AF50+ Premium Package

    Ideal for efficiently creating multiple parts and automated workpiece placement, our AF50+ Autofeed Bandsaw premium package provides all essentials for cutting stock. It includes a roller table for supporting longer uncut stock lengths. With its consistent part length and hands-free operation, the capable AF50+ bandsaw will compliment your CNC machine seamlessly.



    The AF50+ Autofeed Bandsaw provides part length consistency over multiple parts and hands-free operation.



    All Machines from Studica are modified and certified in Canada by eSAFE and have a certification label affixed to the back of each unit. This label is accepted by all electrical regulatory authorities in Canada. All machines are new from Manufacturer but may be opened for inspection by Canadian Electrical Authorities.

    MFR Part #: 51812-PP
    Request a Quote

    Use the AF50+ Autofeed Bandsaw to easily cut multiple parts with automatic workpiece positioning. The bandsaw’s part length consistency and hands-free operation make this an ideal companion to your CNC machine.

    Features:

    • Pneumatic clamping system with adjustable soft squeeze safely holds material from thin-walled tubing to 7 in. steel round bars
    • Hydraulic feed control helps keep your blade cutting straight
    • Four blade speeds accommodate a range of material and blade styles
    • Integrated coolant system keeps your blade and workpiece cool and lubricated
    • Built-in wheels and handle allow for movement around your shop
    • Blade tension indicator for fast and easy tension adjustment after blade changes
    • Built-in display for counting down parts and troubleshooting messages

    Some assembly required.

    Requirements

      • Installation: Pallet jack

    NOTE: If the ground is not smooth, you may need to use a forklift (or similar lifting equipment rated for uneven surfaces) to move the pallet(s).

    • Power and Air:
      • Primary Power: 115 Vac, 50/60 Hz, single-phase
      • Required Circuit Amperage: 15 A
      • Compressed Air Source: 90 psi to 120 psi (620 kPa to 827 kPa)



    • Space:

      NOTE: For detailed space planning information, refer to the operator’s manual.

      • Minimum Depth: 36 in. (0.91 m) plus the length of stock
      • Minimum Height: 67 in. (1.71 m)
      • Minimum Width: 60 in. (1.53 m)

    What’s In the Box?

    The AF50+ Autofeed Bandsaw comes with:

    • Installation tools
    • Operator manual
    • Preinstalled blade



    LET THE CAPABLE AF50+ BANDSAW WORK WHILE YOU TEND TO YOUR SHOP



    Enhance your efficiency and creativity, while working on your business. Automate those tedious manual cuts and free yourself from constant supervision. Plus, it operates on single-phase power for added convenience.




    Use the AF50+ Autofeed Bandsaw to easily cut multiple parts with automatic workpiece positioning. The bandsaw’s part length consistency and hands-free operation make this an ideal companion to your CNC machine.

    Features:

    • Pneumatic clamping system with adjustable soft squeeze safely holds material from thin-walled tubing to 7 in. steel round bars
    • Hydraulic feed control helps keep your blade cutting straight
    • Four blade speeds accommodate a range of material and blade styles
    • Integrated coolant system keeps your blade and workpiece cool and lubricated
    • Built-in wheels and handle allow for movement around your shop
    • Blade tension indicator for fast and easy tension adjustment after blade changes
    • Built-in display for counting down parts and troubleshooting messages

    Some assembly required.

    Requirements

      • Installation: Pallet jack

    NOTE: If the ground is not smooth, you may need to use a forklift (or similar lifting equipment rated for uneven surfaces) to move the pallet(s).

    • Power and Air:
      • Primary Power: 115 Vac, 50/60 Hz, single-phase
      • Required Circuit Amperage: 15 A
      • Compressed Air Source: 90 psi to 120 psi (620 kPa to 827 kPa)



    • Space:

      NOTE: For detailed space planning information, refer to the operator’s manual.

      • Minimum Depth: 36 in. (0.91 m) plus the length of stock
      • Minimum Height: 67 in. (1.71 m)
      • Minimum Width: 60 in. (1.53 m)

    What’s In the Box?

    The AF50+ Autofeed Bandsaw comes with:

    • Installation tools
    • Operator manual
    • Preinstalled blade



    LET THE CAPABLE AF50+ BANDSAW WORK WHILE YOU TEND TO YOUR SHOP



    Enhance your efficiency and creativity, while working on your business. Automate those tedious manual cuts and free yourself from constant supervision. Plus, it operates on single-phase power for added convenience.
