    AM14U5 Frame Only

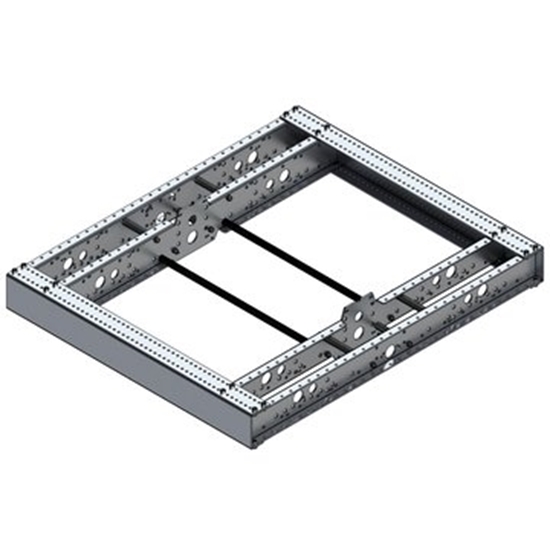

    This chassis is the FRAME ONLY portion of the 2022 FRC Kit of Parts chassis, the AM14U5. This product ships as an un-assembled kit and does not include the gearboxes, belts, wheels or motors.



    Various Configurations:


    Built on the same great features of previous AM14U family chassis, this can be configured into many different perimeter, wheel, and gearbox configurations. There are literally thousands of possible playing configurations.



    It is shipped as a Kit with plates that can build its large square configuration, without any components reduced in length. This makes it the largest possible size and allows for the user to trim the length and width of the chassis to become a long or wide version that fits into different size constraints of each specific year. The assembly instructions show how it can be changed, be sure to check out the assembly videos as well.



    Box Size: 7 in. x 7 in. x 34 in.


    Included Hardware:





    Documents



    CAD File(s)

    AM14U5 Frame Only.STEP

    Don't see what you need?

    See_all_our_guides,_drawings_and_CAD_files_here

    MFR Part #: am-14U5_FO
