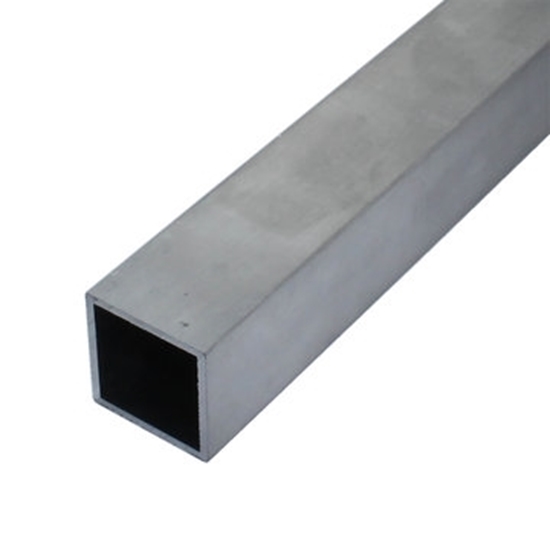

    Box Tube Extrusion, 1 X 1 in., .063 Wall Thickness, 6 ft. Length

    Be the first to review this product

    These aluminum box extrusions are robust and lightweight solutions for custom robot frames, superstructures and mechanism construction. Made to all of your favorite English sizes, the classic 2x1 thin wall tubing is now joined by its thicker-walled counterpart. We have also introduced two thicknesses of 1x1 sizes that teams know and love to build their medium-sized mechanisms.



    For smaller mechanisms, we recommend using our 5/8 square box tube that is also compatible with our S3 line of brackets and gussets.



    Available Sizes:

    • 2 x 1 x 1/16 in. (0.063 in.) 6061-T6 alloy
    • 2 x 1 x 1/8 in. (0.125 in.) 6061-T6 alloy
    • 1 x 1 x 1/16 in. (0.063 in.)6061-T6 alloy
    • 1 x 1 x 1/8 in. (0.125 in.)6061-T6 alloy
    • 5/8 x 5/8 x 1/16 in. (0.063 in.) 6061-T6 alloy
    • All lengths are (+/- 1in)



    Be sure to all check out our Gussets as they work wonderfully with all of these wonderful extrusions.



    Specifications

    • Material: Aluminum



    Documents

    Layout Print(s)

    am-3214 2x1x0625 6061-T6 wall tubing.PDF

    am-4203 1x1x063 wall tubing.PDF

    am-4204 1x1x0.125 wall tubing.PDF

    am-4205 2x1x0.125 wall tubing.PDF

    CAD File(s)

    am-3214 2x1x0625 wall tubing.STEP

    am-4203 1x1x0625 wall tubing.STEP

    am-4204 1x1x0.125 wall tubing.STEP

    am-4205 2x1x0.125 wall tubing.STEP

    MFR Part #: am-4203-6
    $45.00
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent

    Also Purchased

    Picture of 10-32 Nylock Jam Nut

    10-32 Nylock Jam Nut

    #am-1063
    $0.11
    (325 In stock)

    Must be ordered in mulitples of 25



    Picture of 10-32 Nylock Nut

    10-32 Nylock Nut

    #am-1042
    $0.08
    (In stock)

    This item can only be purchased in multiples of 25



    Specifications:

    • Material: Steel
    • Coating: Zinc Plated
    • Thread: #10-32
    • Thickness: 0.249"
    • Thread: Fine
    • Thread Size: 32
    • Type: Nylon Insert Lock Nut
    • Wrench Size: 3/8"
    Picture of 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet

    3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet

    #am-1226
    $0.30

    This item can only be purchased in multiples of 25



    Product Overview



    These blind steel rivets are a perfect, strong choice for creating frames when using our 1in. Gussets paired with up to .125" wall aluminum tubing. These steel rivets won't let you down when you need them most!

    Specifications

    • Diameter: 3/16 in.
    • Drill Size For Hole: #11
    • Finish: Zinc
    • Grip Range: 0.126-0.25 in.
    • Head: Buttonhead
    • Hole Size: 0.192-0.196 in.
    • Length: 0.45 in.
    • Mandrel Material: Steel
    • Material: Steel
    • Rivet Style: Blind
    • Weight: 0.0094
    Picture of 10-32 x 0.5 in. Socket Head Cap Screw

    10-32 x 0.5 in. Socket Head Cap Screw

    #am-1002
    $0.35

    This item can only be purchased in multiples of 25



    #10-32 x 0.5 in. long Socket Head Cap Screw



    Specifications

    • Finish: Zinc
    • Head: Socket Cap
    • Length: 0.5 in.
    • Material: Steel
    • Thread: 10-32
    • Weight: 0.1 lbs
    Picture of 1/4-20 Nylock Nut

    1/4-20 Nylock Nut

    #am-1015
    $0.11
    (500 In stock)

    Specifications:

    • Material: Steel
    • Coating: Zinc plated
    • Thread: 1/4-20
    • Width across hex: 7/16"
    Picture of #10-32 x 1.5" SHCS - Min 25

    #10-32 x 1.5" SHCS - Min 25

    #am-1014
    $0.38
    (In stock)

    Statistics:

    • Material: Steel
    • Coating: Zinc plated
    • Thread: #10-32
    • Length: 1-1/2 inch
    • Head: Socket Head Cap Screw
    Picture of 1/4-20 x 0.5" BHCS - Min 25

    1/4-20 x 0.5" BHCS - Min 25

    #am-1039
    $0.50
    (800 In stock)

    Specifications:

    • Material: Steel
    • Coating: Zinc plated
    • Thread: 1/4-20
    • Length: 1/2"
    • Head: Button Head Cap Screw
    Picture of 90 Degree Gusset

    90 Degree Gusset

    #am-3860
    $5.00
    (44 In stock)

    We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.



    On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.



    Specifications

    • Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
    • Material: 6061-T6 Aluminum
    • Thickness: 0.125 in



    Documents

    Layout Print(s)

    am-3860 90 Gusset REV2.PDF

    am-4158 1IN Tee Gusset.PDF

    am-4159 1IN Quad Gusset.PDF

    am-4160 1IN 30deg Gusset.PDF

    am-4161 1in 45deg Gusset.PDF

    am-4162 1in 60deg Gusset.PDF

    am-4163 1in 120deg Gusset.PDF

    am-4164 1in 135deg Gusset.PDF

    am-4165 1in 150deg Gusset.PDF

    am-4166 1IN Sport Double Bearing Mount.PDF

    am-4167 1IN 57Sport Side Mount Gusset.PDF

    am-4168 1IN Bearing Side Mount Gusset.PDF

    CAD File(s)

    am-3860 90 Gusset REV2.STEP

    am-4158 1IN Tee Gusset.STEP

    am-4159 1IN Quad Gusset.STEP

    am-4160 1IN 30deg Gusset.STEP

    am-4161 1in 45deg Gusset.STEP

    am-4162 1in 60deg Gusset.STEP

    am-4163 1in 120deg Gusset.STEP

    am-4164 1in 135deg Gusset.STEP

    am-4165 1in 150deg Gusset.STEP

    am-4166 1IN Sport Double Bearing Mount.STEP

    am-4167 1IN 57Sport Side Mount Gusset.STEP

    am-4168 1IN Bearing Side Mount Gusset.STEP

    Picture of Split Collar Clamp 1/2 in. Hex HD

    Split Collar Clamp 1/2 in. Hex HD

    #am-1526
    $5.50
    (186 In stock)

    This new custom designed collar clamp has been designed specifically with FIRST Robotics Competition teams in mind. This product is Out of Stock until Mid March

    Picture of 2 x 1 x 0.063 Aluminum Box Extrusion, 6ft

    2 x 1 x 0.063 Aluminum Box Extrusion, 6ft

    #am-3214-6
    $49.00
    (17 In stock)

    This sharp-cornered 6061-T6 aluminum extrusion is a robust and lightweight solution for custom robot frames and mechanism construction.

    Specifications:

    • Length: 72" (+/- 1")
    • Wall Thickness: 0.062"
    • Exterior Corners: Sharp
    • Material: 6061-T6 Aluminum
    • Weight: 2.4 Pounds
