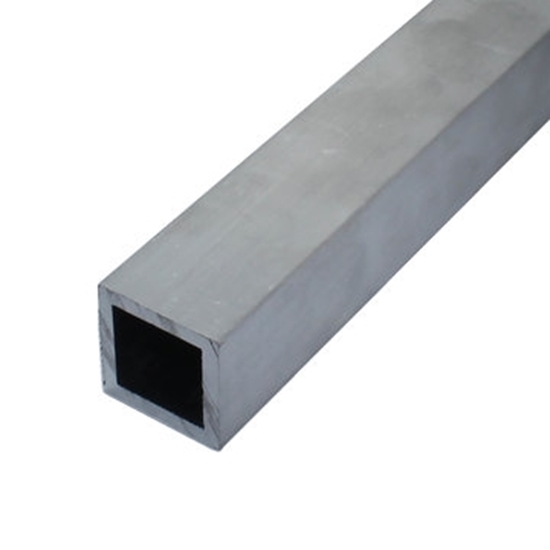

    Box Tube Extrusion, 1 X 1 in., .125 Wall Thickness, 6 ft. Length

    These aluminum box extrusions are robust and lightweight solutions for custom robot frames, superstructures and mechanism construction. Made to all of your favorite English sizes, the classic 2x1 thin wall tubing is now joined by its thicker-walled counterpart. We have also introduced two thicknesses of 1x1 sizes that teams know and love to build their medium-sized mechanisms.



    For smaller mechanisms, we recommend using our 5/8 square box tube that is also compatible with our S3 line of brackets and gussets.



    Available Sizes:

    • 2 x 1 x 1/16 in. (0.063 in.) 6061-T6 alloy
    • 2 x 1 x 1/8 in. (0.125 in.) 6061-T6 alloy
    • 1 x 1 x 1/16 in. (0.063 in.)6061-T6 alloy
    • 1 x 1 x 1/8 in. (0.125 in.)6061-T6 alloy
    • 5/8 x 5/8 x 1/16 in. (0.063 in.) 6061-T6 alloy
    • All lengths are (+/- 1in)



    Be sure to all check out our Gussets as they work wonderfully with all of these wonderful extrusions.



    Specifications

    • Material: Aluminum



    Documents

    Layout Print(s)

    am-3214 2x1x0625 6061-T6 wall tubing.PDF

    am-4203 1x1x063 wall tubing.PDF

    am-4204 1x1x0.125 wall tubing.PDF

    am-4205 2x1x0.125 wall tubing.PDF

    CAD File(s)

    am-3214 2x1x0625 wall tubing.STEP

    am-4203 1x1x0625 wall tubing.STEP

    am-4204 1x1x0.125 wall tubing.STEP

    am-4205 2x1x0.125 wall tubing.STEP

    MFR Part #: am-4204-6
    $50.00
