Camera Flange

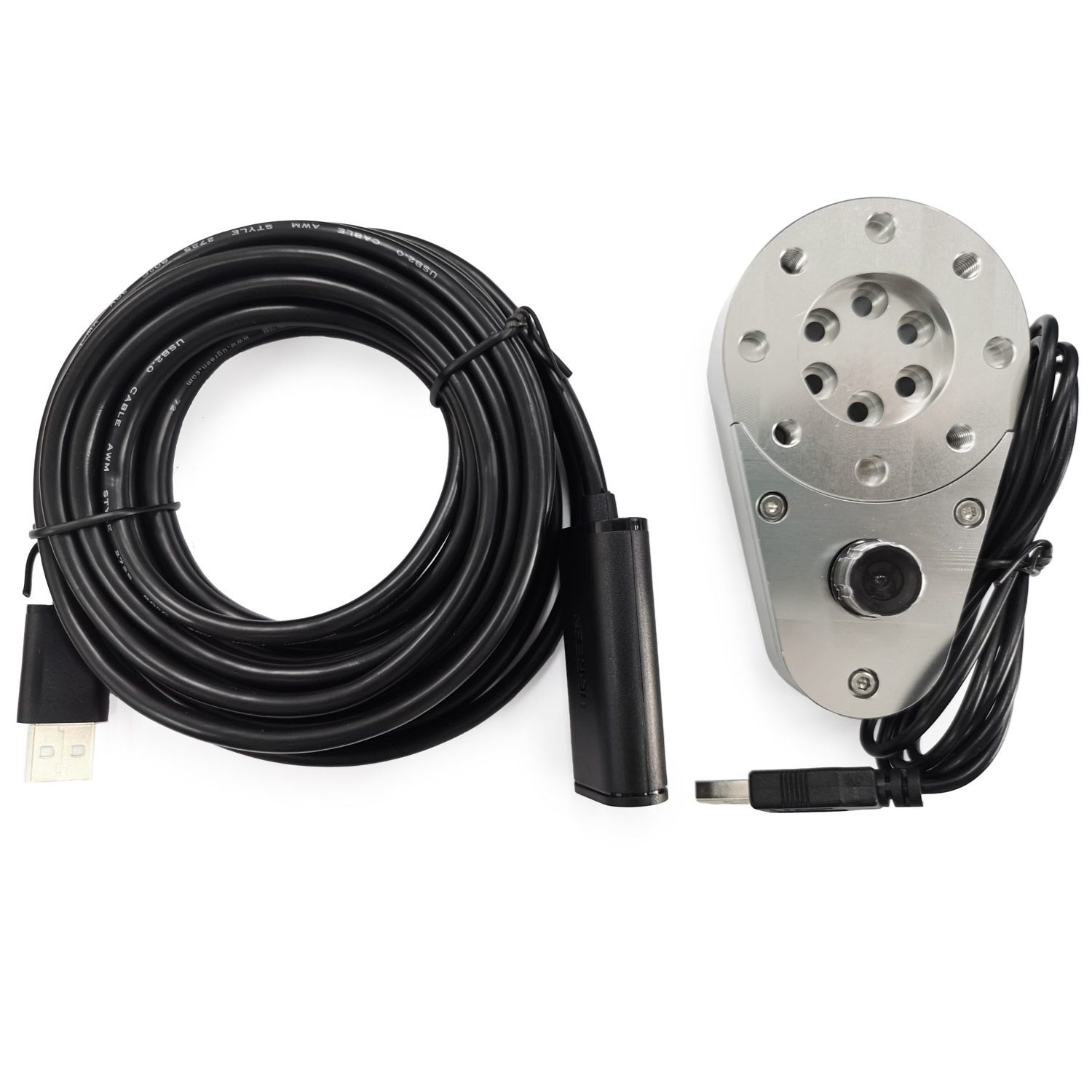

ZA6 robot flange with camera and USB extension cable.

Specifications:

• Flange match standard: ISO_9409-1-50-4-M6
• Camera Model: JY002402001
• Resolution: 1 Megapixel (MP)
• Circuit board size: 11.02 x 11.02 in. (28 x 28cm)
• Lens: 60 degree
• USB 2.0
• Focus mode: manual focus
• Imaging distance: 2cm-infinite
• USB cable length: 3.93 ft. (1.2m)
• USB extension length: 16.4 ft. (5m)
• Frame rate: 720P@40fps/VGA@80fps , 720P@40fps/VGA@90fps
• Output image format: YUV /MJPEG
• Photographic processing: Adjustable brightness, contrast, hue, saturation, clarity, gamma, white balance
• Working temperature: '-20C ~70C
• Working voltage: 5V
• System compatibility: Win7 Win8 Win XP SP2, Vista free drive ; Support Linux and Android
• Active size: 1/4'
• Power: <0.7W
• Frequency: 50Hz/60Hz
• Default window: 1280X720
• Dynamic range: 90dB
