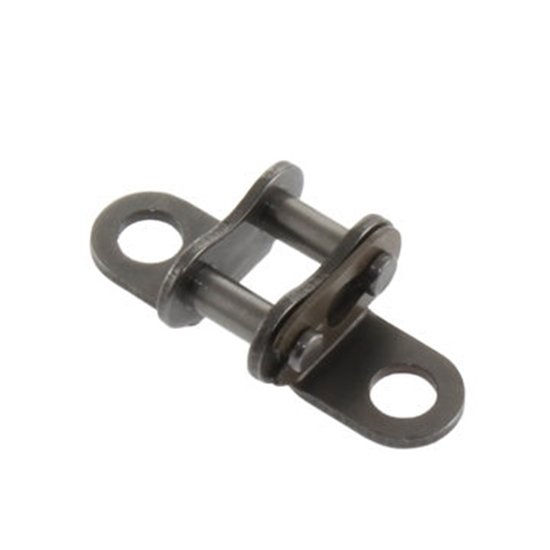

Chain Attachment Link #35

These connecting chain attachment links, also known as K-links, are perfect for securing components that need movement, to a chain. These versions were specifically designed by AndyMark to interface with common FRC and FTC products. The #35 chain version is designed for #10 hardware on a 1 on. hole spacing. The #25 chain version is designed for #6 hardware with 16 mm (5/8 in.) hole spacing. Both versions make it much easier to interface chain to elevator systems than ever before. They can also be used in conveyor systems to move items around inside your robot.

Specifications

• Chain Size: #25, #35
• Hole Size: #25: 0.150 in., #35: 0.201 in.
• Hole Spacing: #25: 16 mm, #35: 1.00 in.
• Load Capacity : #25: 150lb, #35: 300lb
• Material: Steel
• Pitch: #25: 0.250 in., #35: 0.375 in.
• Weight: 0.01 lbs

Documents

Layout Print(s)

am-4181_25 25 Chain Attachment Link.PDF

am-4181_35 35 Chain Attachment Link.PDF

CAD File(s)

am-4181_35 35 Chain Attachment Link.STEP

am-4181_25 25 Chain Attachment Link.STEP

These custom designed collar clamps have been designed specifically with FIRST Robotics Competition teams in mind. The one-piece collar clamp is a nice fractional 1/2 in. width to make shaft stackups easy. The clamping force is provided by a 10-32 socket head screw, which is bigger than most used in the competition marketplace.  This provides a high-strength clamping solution that shouldn't strip out when you need it most. You can even replace the 10-32 screw if it becomes lost with the screws historically used in the AM14U family of chassis. These thoughtfully designed collar clamps also have small bosses on each side. This allows these collar clamps to be installed directly adjacent to an FR8ZZ Round or FR8ZZ Hex bearing without rubbing on the outer races for smooth operation.

#25 Connecting Link (Master Link)

Specifications:

• Material: Steel
• Style: Roller Chain - Spring Clip
• Type: Connecting Link
• Size: #25
• Pitch: 0.250 inch
• Weight: 0.01 lbs

#25 Half Link. Also known as #25 Offset Link.

Specifications:

• Material: Steel
• Style: Roller Chain with interted pin
• Type: Half Link
• Size: #25
• Pitch: 0.25 inch
• Weight: 0.01 lbs

These 2.25" diameter HD (heavy-duty) solid-core Compliant Wheels are intended for manipulating objects where you need a little 'give' in your intake system. These wheels deform out of the way to allow rigid objects to be manipulated easily. This makes for high-performance intakes and internal conveyors. These wheels do not require the use of expensive hubs to be driven, thanks to their integrated high strength polycarbonate hubs - which are made from the same mold that creates our Hex Molded Spacers.

This is a push-to-connect "Y" fitting.

Specifications:

• Weight: 0.02 lbs
• Width: 1.515 in
• Height: 0.56 in
• Depth: 1.31 in
• Material: plastic body material
• Ports: 1/4" push-to-connect fitting
• Pressure range: 0-150 psi

This gear is used as the input pinion gear for the EVO Shifter. This gear is a tight press fit onto a CIM gear, and requires at minimum a 3-ton arbor press to install. If a CIM motor with this gear pre-installed interests you, check out am-0255_15T.

Specifications:

• Tooth Count: 15
• Diametral Pitch: 32
• Pressure Angle: 20
• Pitch Diameter: 0.469"
• Face Width: 0.531"
• Thickness: 0.75"
• Material: 1117 Steel
• Bore: 0.312" Round (7.92mm) This is a press fit onto the CIM Motor (am-0255)
• Weight: 0.019 Lbs

Do you need an odd number of chain links? Tired of dealing with cotter pins in old school "half links"?  Love using the DarkSoul or ARC chain tool for everything? These are the links for you!

These links add one and a half links to a run of chain making for easier cleaner alternative to half links. Use a chain splicing tool or two master links to install them. No more lost matches from a failed half link!

Specifications

• Chain Size: #25, #35
• Material: Steel
• Pitch: 0.25 in., 0.375 in.
• Style: Roller Chain

Do you need an odd number of chain links? Tired of dealing with cotter pins in old school "half links"?  Love using the DarkSoul or ARC chain tool for everything? These are the links for you!

These links add one and a half links to a run of chain making for easier cleaner alternative to half links. Use a chain splicing tool or two master links to install them. No more lost matches from a failed half link!

Specifications

• Chain Size: #25, #35
• Material: Steel
• Pitch: 0.25 in., 0.375 in.
• Style: Roller Chain

This Inline Chain Tensioner for #35 series roller chain is perfect to adjust the desired tension in a long run of chain on mechanisms such as elevators and arms. This is ideal where there is at least a ~3" section of chain that never passes over a sprocket in a given mechanism. Pair this with two #35 Master Links and integrate this to your robot for an easy-to-use chain tension solution!

The design of this product was inspired by Misumi's Chain Turnbuckles. This product has been improved to be compatible with imperial-sized wrenches.

Specifications

• Chain Size: #35

Documents

CAD File(s)

am-3914_35 35 Chain Tensioner.STEP

Layout Print(s)

am-3914_35 #35 Chain Inline Tensioner.PDF
