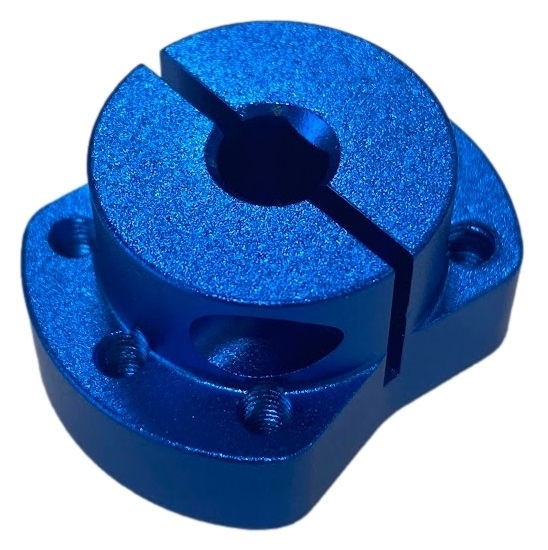

Clamping 6mm D-Shaft Hub - v2

May be used with 6mm D-Shape Shaft to secure wheels in their position.


Specifications:

• Φ20.0mm*8.0mm thick
• 1*M3 thread for M3 SHCS on the clamp side
• Φ6.0mm D hole
• AL6061-T6
• Step File

The Studica Light Weight Shaft Hub is used with the 6mm D shafts. It has a 5mm set screw for tight clamping and seven M3 tapped mounting holes.

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm D Shaft ID
• M3 tapped hole pattern for connecting to structure
• Step File

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

• Step File

The D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axels.

Specifcations:

• Material: 6061-T6 Aluminum

• Step File

TETRIX MAX Motor Mount Pack attaches the DC Drive Motor to your robot. Includes the Motor Mount, two kep nuts, and two cap screws.

• Nominal Size: 72 mm x 12.7 mm
• Material: 7005 Aluminum

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File

The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Step File

The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

• Step File

The Flange Bearing 14mm OD fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

• Quantity: 1 or 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm
• Step File

The 100mm Slim Mecanum Wheel Set comes with 2 left and 2 right, and steel ball bearings. With blue steel frame and black rollers.  The wheel is comprised of 12 black rollers and is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.

Rollers are mounted with steel ball bearings, making the roll more fluent.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                     38m
• Number of Rollers:                                 12
• Number of Plates for each wheel:          2
• Body material:                                        Steel
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Delrin
