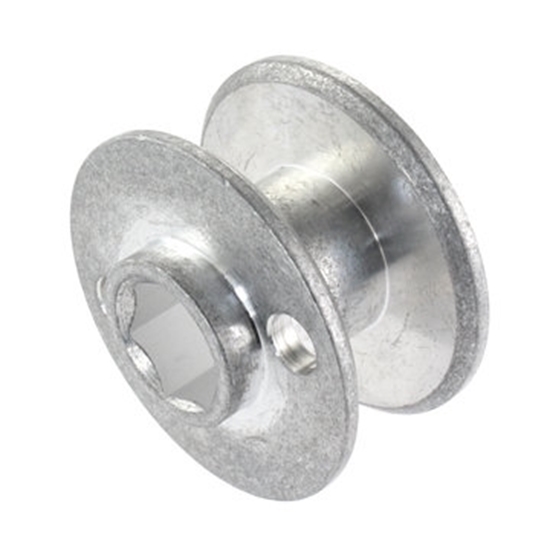

This spool is used in the Climber in a Box Winch Kit. It's used with 10 feet of Rope to create a strong elevator or winch system.
CAD File(s)
am-4647_2000 Full Winch Spool For 2 in. Box Tube.STEP
am-4647_1500 Full Winch Spool For 1.5 in. Box Tube.STEP
Layout Print(s)
am-4647_1500 Climber in a Box 1 Stage Winch Spool.pdf
am-4647_2000 Climber in a Box 2 Stage Winch Spool.pdf
Specifications:
This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.
#25 Connecting Link (Master Link) Specifications:
Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.
am-3949 2.25IN 500Hex HD Compliant Wheel REV3.PDF
am-3950 2.25IN 375Hex HD Compliant Wheel REV3.PDF
am-4536 2.25in HD 5mm Hex Molded Compliant Wheel.PDF
am-3949 2.25IN 500Hex HD Compliant Wheel.STEP
am-3950 2.25IN 375Hex HD Compliant Wheel.STEP
am-4536 2IN OverMolded 5mm Hex Compliant Wheel.STEP
#25 Half Link. Also known as #25 Offset Link. Specifications:
Machine Key, steel Fits in 2.5" CIM Motor shafts. Specifications:
This adapter converts an 8 mm keyed shaft to 1/2 in. hex. The keyway is 2 mm wide. This allows you to adapt the output of a motor or gearbox like the CIM Motor (am-0255) to any of our hubs or wheels with a 1/2 in. hex bore. You'll need a 2 mm machine key (am-1121) to complete the assembly and transmit torque from the motor.
This adapter is no longer available in the 0.75 in. length.
This is a push-to-connect "Y" fitting.Specifications:
