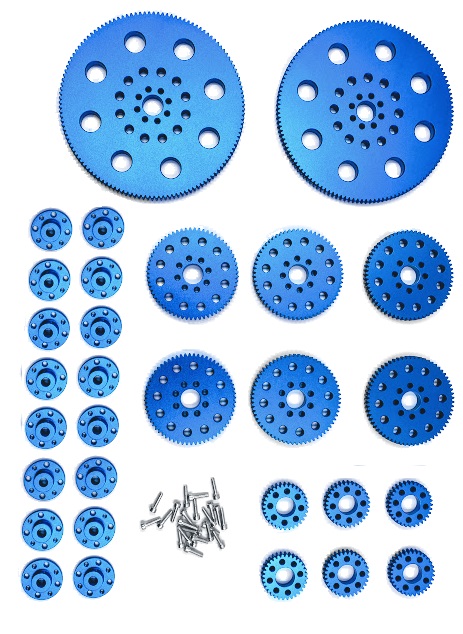

    Gear Pack

    Includes,

    • 3 - 32 Tooth Gear (2 pack)  76220-2
    • 3 - 64 Tooth Gear (2 pack)  76221-2
    • 2 - 128 Tooth Gear  76222
    • 4 - 6mm Shaft Hub (4 pack)  76284-4
    • 1 - M3 x 12mm Socket Head Cap Screw (pack of 100)  76202-100
    MFR Part #: 70261
    $246.48
    In stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
