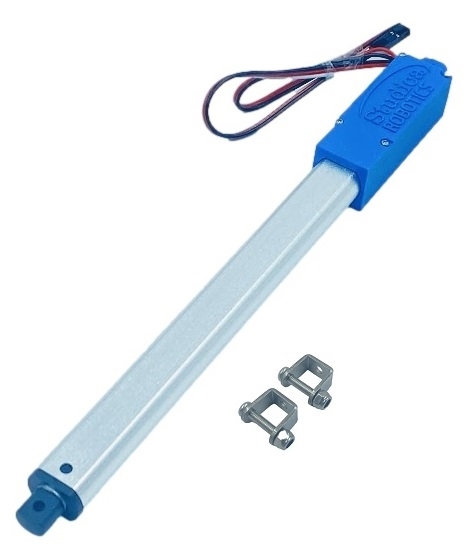

Linear Servo RC Actuator 140S-190N

The Studica Linear Servo RC Actuator 140S-190N is a new Servo motor which has a stroke of 140mm and a max force of 190N. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

MFR Part #: 75014

$97.22

Availability: In stock

Qty:

Specifications
Reviews

Specifications:

Stroke: 140mm
Length: 208mm
Weight: 96g
Extended length: 348mm
Gear Ratio: 150:1
Speed (no load): 6mm/s
Max Force: 190N
Stall Torque: 325N
Wire length: 340mm
Connector: 2.54mm Dupont 3-Pin Female
Control Signal: PWM
Frequency: 50 HZ
Voltage: 6V
Data Sheet
Step files
