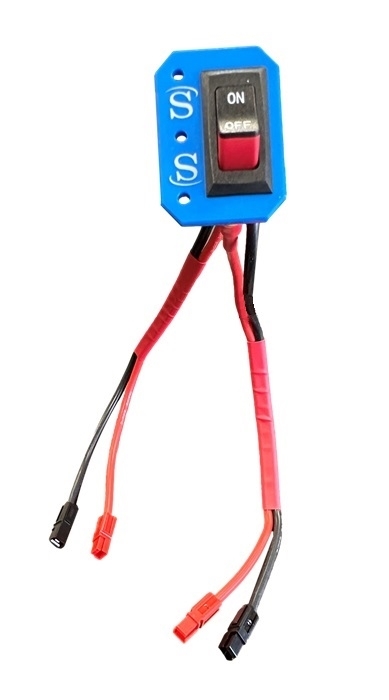

On/Off Power Switch Kit (FTC Legal)

The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

The 60 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 60 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

ODΦ20.0mm*ID14.0mm
*3.0mm thick
8*Φ3.50mm holes
10pcs per pack
Delrin
Blue

The Intake Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Used with the Silicone Rubber Tubing #76410

Specifications:

• Main piece
  • hex width: 20.78mm*10.0mm thick
  • 6*M6 tapped holes
  • 1*M4 tappped hole for M4 set screw
  • 6.0mm Diameter D Hole
  • Material AL6061-T6
  • Φ7.5mm*14.0mm
• Pins
  • 6PCS in a pack
  • M6*4.0mm thread
  • Material SS303
• Step file

Used with the Intake Kit to create various intake system with various lengths.

• ID: 6mm
• OD: 10mm
• 1000mm long
• Wall Thickness: 2mm
• Flexible
• Bend Radius: ~30mm
• Silicone
• Durometer: 70A
• Black
• Step File

Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

These are all of our 15 mm wide 5 mm pitch HTD synchronous timing belt offerings. All of these belts are a composite of flexible rubber with a fiberglass tensile member throughout. Synchronous timing belts, also know as a toothed belt or synchronous belt, are designed to eliminate slippage and keep any number of objects rotating at a constant rate. We offer genuine Gates brand belts, as well as lower-cost AndyMark or generic branded belts. Note, when purchasing an "AndyMark" belt, we may substitute for a "generic" due to available stock at the time of purchase.

AndyMark Brand Belts

• 30T - 150-5M-15 - am-5215_30T
• 35T - 175-5M-15 - am-5215_35T
• 40T - 200-5M-15 - am-5215_40T
• 45T - 225-5M-15 - am-5215_45T
• 50T - 250-5M-15 - am-5215_50T
• 55T - 275-5M-15 - am-5215_55T
• 60T - 300-5M-15 - am-5215_60T
• 64T - 320-5M-15 - am-5215_64T
• 65T - 325-5M-15 - am-5215_65T
• 70T - 350-5M-15 - am-5215_70T
• 75T - 375-5M-15 - am-5215_75T
• 80T - 400-5M-15 - am-5215_80T
• 85T - 425-5M-15 - am-5215_85T
• 90T - 450-5M-15 - am-5215_90T
• 95T - 475-5M-15 - am-5215_95T
• 100T - 500-5M-15 - am-5215_100T
• 105T - 525-5M-15 - am-5215_105T
• 107T - 535-5M-15 - am-5215_107T
• 110T - 550-5M-15 - am-5215_110T
• 115T - 575-5M-15 - am-5215_115T
• 117T - 585-5M-15 - am-5215_117T
• 120T - 600-5M-15 - am-5215_120T
• 125T - 625-5M-15 - am-5215_125T
• 130T - 650-5M-15 - am-5215_130T
• 131T - 655-5M-15 - am-5215_131T
• 135T - 675-5M-15 - am-5215_135T
• 140T - 700-5M-15 - am-5215_140T
• 145T - 725-5M-15 - am-5215_145T
• 150T - 750-5M-15 - am-5215_150T
• 151T - 755-5M-15 - am-5215_151T
• 160T - 800-5M-15 - am-5215_160T
• 170T - 850-5M-15 - am-5215_170T
• 180T - 900-5M-15 - am-5215_180T
• 190T - 950-5M-15 - am-5215_190T
• 200T - 1000-5M-15 - am-5215_200T
• 225T - 1125-5M-15 - am-5215_225T
• 250T - 1250-5M-15 - am-5215_250T

The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 48mm
• Width - 48mm
• Length - 288mm
• Hole pattern - 6
• Step File

The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 432mm length
• 6mm OD
• 5.5mm to flat
• Step File
