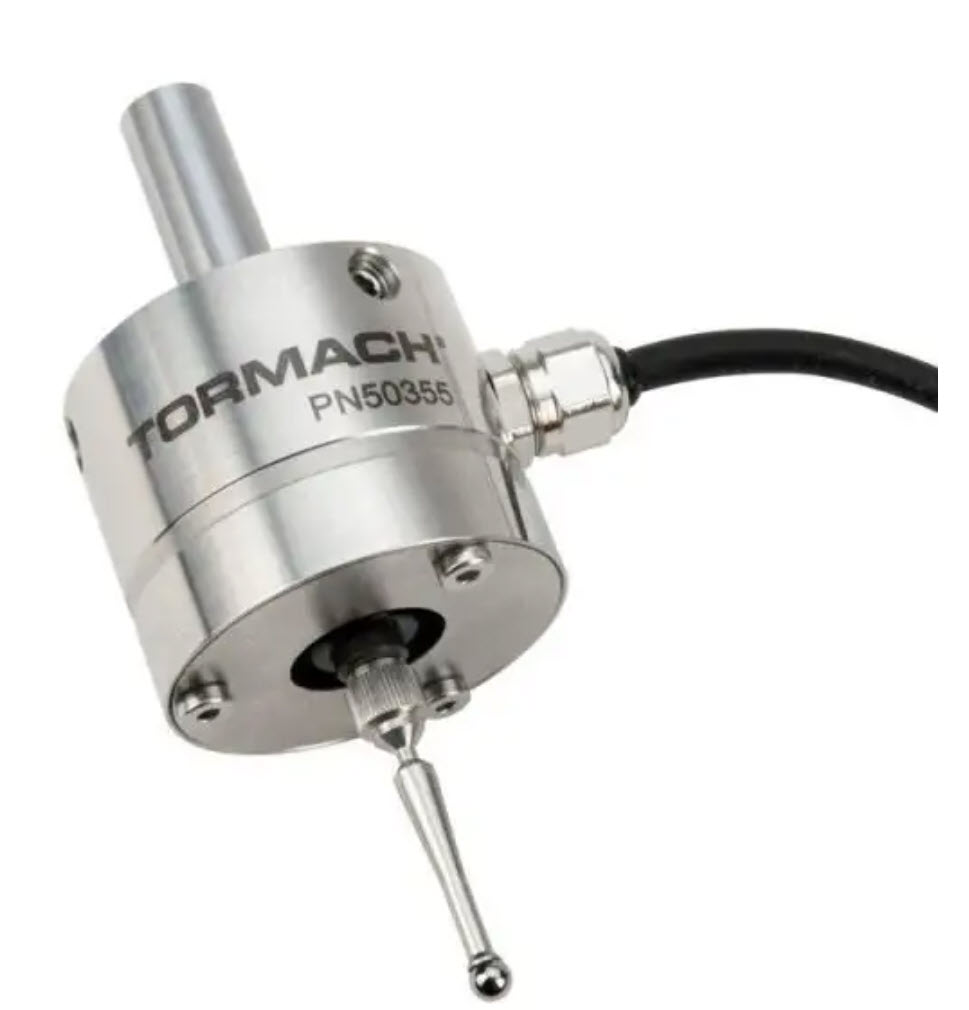

Passive Probe - Probe Only

The Passive Probe - Probe only is an affordable probe for locating and digitizing, suitable for hobbyist/occasional use

MFR Part #: 50355

$670.00

Qty:

Our passive probe is an affordable option for occasional and hobby use. Suitable for edge finding, digitizing, and other basic probing procedures

Use with replacement tip PN 31899

Note: This product is not compatible with the 1500MX CNC Mill.

Specifications

Measuring Direction	±X, ±Y, & +Z
Repeatability	0.00059 in. (0.015 mm)
Maximum Over-Travel In +Z	+ .1968 in. (5.0 mm)
Maximum Angular Displacement	± 15°
Radial (X-Y) Trigger Force	30-60 g
Axial Trigger Force	500 ± 30 g
Water Resistance	IP66
Shank size	10mm

Our passive probe is an affordable option for occasional and hobby use. Suitable for edge finding, digitizing, and other basic probing procedures

Use with replacement tip PN 31899

Note: This product is not compatible with the 1500MX CNC Mill.

Specifications

Measuring Direction	±X, ±Y, & +Z
Repeatability	0.00059 in. (0.015 mm)
Maximum Over-Travel In +Z	+ .1968 in. (5.0 mm)
Maximum Angular Displacement	± 15°
Radial (X-Y) Trigger Force	30-60 g
Axial Trigger Force	500 ± 30 g
Water Resistance	IP66
Shank size	10mm
