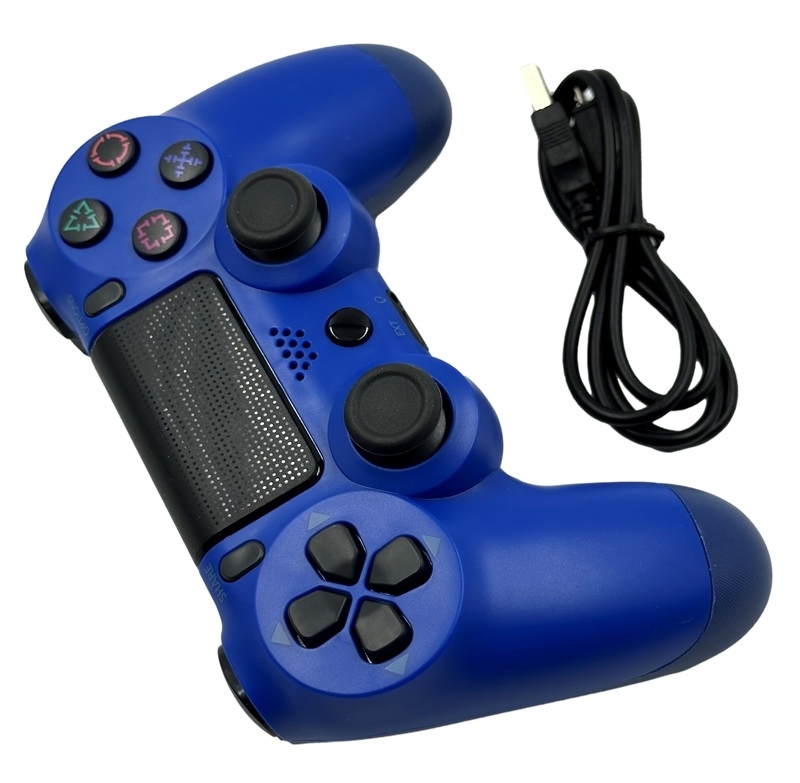

Remote Controller - Bluetooth

The Studica VMX FRC-compatible Training Bot (FRC Trainer) is a smaller, sturdy, lightweight, and less expensive robot than your typical FRC robot. If you have a large FRC team, often only a handful of students get to learn how to create and program your team’s costly competition robot.  The FRC Trainer solves this problem and is ideal for groups of two to three to participate in hands-on learning in a classroom environment.  Schools can equip their labs with multiple FRC Trainers, benefiting from the great value and compact size. Students can even take it home with them!

This affordable solution is intended for:

• FRC teams that want to learn and train on a smaller and more affordable robot,
• Schools looking for a way to teach FRC robotics in the classroom.
• Schools that want to teach coding in the classroom through robotics.

The FRC-compatible Trainer is an intelligent and autonomous robot that uses the VMX Advanced Robotics Controller which can be programmed in C++ and Java.  VMX’s multitude of modern digital communications interfaces and Linux-based operating system allow users to directly access most modern devices (e.g., Intel RealSense tracking and depth cameras and LIDAR).

This extension cable has one male and one female connector and is 50 cm long.  You will receive 2 cables.

The XT30 is keyed and locking for better reliability.

Specifications

• Length: 50 cm

The Studica Fast Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Fast Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

• Step File

The Studica SR-Pro 8mp Camera with CSI to HDMI Adapter board was designed for the VMX-Titan Robotics Platform for WorldSkills, and Raspberry Pi hardware.

Features and Specifications:

• Camera:
  • Optical Size - 1/4’’
  • Resolution - 8mp
  • Frame Rate - 1080p30, 720p60 and 640 × 480p60/90
  • Field of View (FOV) - 75 degrees (Horizontal)
  • Lens Mount - M12
  • IR Sensitivity - Visible Light Only
  • Step File

• CSI-HDMI Adapter Board:
  • Supports Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
  • Support Raspberry Pi 5MP OV5647/8MP IMX219/12MP IMX477 camera
  • HDMI - High Speed - 1M length
  • Reserved microphone and headphone jack for audio or GPIO signals
  • Three additional solder pads are available (same signals as headphone jack

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Specifications:

Type:                             Metal Brush Motor
Horn Gear Spline:       25T (5.9mm)
Size:                               40mm x 20.1mm x 38.3mm
Weight:                          65g
Maximum Speed:        62RPM at 6V
Stall Torque:                 20kg.cm at 6V
Voltage:                         6-7 4V
Cable:                             22AWG, 75cm

• Step File

Studica 100mm Aluminum Mecanum Wheel w/6mm Hub. With blue aluminium frame and yellow rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                       50m
• Number of Rollers:                                 9
• Number of Plates each wheel:             2
• Body material:                                        Aluminium alloy
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Nylon
• Length of roller:                                     19mm
• Weight:                                                    354gm
• Step File

Hub Specifications:

• Inside Diameter:                                    6mm
• Outside Diameter :                                22mm
• Bore Length:                                          15mm
• Weight:                                                   32g

The Studica Analog Module

• Includes JST-SH to JST-GH Cable
• Step File

The Studica 12V 3,000 mAh NiMH (nickel metal hydride) Battery Pack, PP45 comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery that brings long-lasting power to motors and electronics that are used in the WorldSkills Mobile Robotics Collection. The Studica NiMH Battery Pack Charger, PP45, is required to charge the battery.

This battery is NOT COMPETITION LEGAL for FIRST TECH CHALLENGE or FIRST ROBOTICS COMPETITION.

Specifications,

• Dimmensions: 5 x 2.1 x 2.1 inches (115 mm x 45 mm x 50 mm)
• Weight: 1.32lbs (579 g)
• Built-in 20-amp replaceable fuse for safety
• 10-cell pack provides 3,000-mAh capacity for longer life
• PP45 connector for easy and safe connection to controller
• Step File

• Diameter: 110mm
• Width: 45mm
• Inner diameter of wheel frame: 75mm
• Hexagon connector: 12mm
• Unit weight: 128g
• 6mm axle adapter
