Robits Lift Kit - 1 Stage

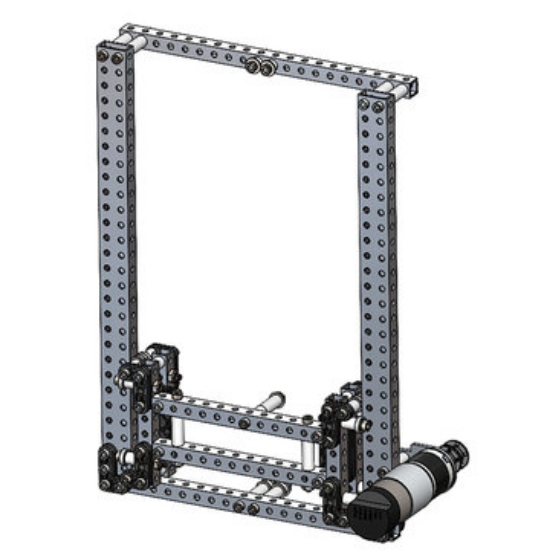

In FTC, a simple lift can be a very powerful thing. Fully compatible with the Robits Build System, this lift offers a durable linear motion option to help teams reach their goals. Teams familiar with FRC-style elevators will find many key features that are now the gold standard for lifts. This kit is bearing-based, providing smooth extension and retraction with bearings reacting on perpendicular tube faces to prevent binding. The carriage section has plenty of mounting holes for teams to mount a wide range of mechanisms and components making it adaptable to any situation.

Options:

1 Stage has 9.5 inches of stroke
2 Stage has 21 inches of stroke

MFR Part #: am-5166

$225.00

2 in stock

Qty:

Specifications

Suggested Rigging:

Continuous
- One string per direction that connects through each stage
- For more details, see the assembly guide

Included Powering/Gearing:

NeveRest Orbital 13.7 to 1
- Speedy, approximately 1 second per stage at full speed.
- Enough torque to easily lift multiple stages with a manipulator and game pieces

Components in 1 Stage Kit (am-5166):

8 - 10-32 x 1.5 in. Socket Head Cap Screw (am-1014)
7 - #10 Flat Washer (am-1026)
12 - 10-32 x 1.25 in. Socket Head Cap Screw (am-1041)
2 - 10-32 x 1.75 in. Socket Head Cap Screw (am-1048)
2 - 10-32 x 1 in. Socket Head Cap Screw (am-1056)
45 - 10-32 Nylock Jam Nut (am-1063)
21 - 10-32 x 2.25 in. Socket Head Cap Screw (am-1156)
4 - M3-0.5 x 8 mm Socket Head Cap Screw with Thread Patch (am-1500)
9 - 0.194 in. ID 0.375 in. OD 1.000 in. Long Nylon Spacer (am-1696)
21 - 0.194 in. ID 0.375 in. OD 0.500 in. Long Nylon Spacer (am-1697)
4 -0.194 in. ID 0.375 in. OD 0.250 in. Long Nylon Spacer (am-1700)
1 - Power String, 1.4MM, 100' Spool (am-3159)
1 - 6 mm D to 0.375 Hex Adapter (am-3444)
2 - 0.192 in. ID 0.375 in. OD 0.750 in. Long Nylon Spacer (am-4107)
1 - 13.7 : 1 NeveRest Orbital Gearmotor (am-4610b)
20 - 5 mm ID 13 mm OD Shielded Bearing (695ZZ) (am-4724)
4 - 4 in. Long 0.5 in. x 0.5 in. Robits Tube (am-5001-0400)
2 - 6 in. Long 0.5 in. x 0.5 in. Robits Tube (am-5001-0600)
2 - 10 in. Long 0.5 in. x 0.5 in. Robits Tube (am-5001-1000)
12 - Robits L Gusset (am-5004_2x3)
4 - Robits 2 x 4 Plate Gussets (am-5006_2x4)
1 - Robits Motor Mount Bracket (am-5012)
2 - 14 in. Long 1 in. x 0.5 in. Robits Tube (am-5026-1400)
2 - Robits Spool (am-5027)

Components in 2 Stage Kit (am-5167):

20 - 10-32 x 1.5 in. Socket Head Cap Screw (am-1014)
11 - #10 Flat Washer (am-1026)
12 - 10-32 x 1.25 in. Socket Head Cap Screw (am-1041)
2 - 10-32 x 1.75 in. Socket Head Cap Screw (am-1048)
14 - 10-32 x 1 in. Socket Head Cap Screw (am-1056)
71 - 10-32 Nylock Jam Nut (am-1063)
26 - 10-32 x 2.25 in. Socket Head Cap Screw (am-1156)
4 - M3-0.5 x 8 mm Socket Head Cap Screw with Thread Patch (am-1500)
9 - 0.194 in. ID 0.375 in. OD 1.000 in. Long Nylon Spacer (am-1696)
39 - 0.194 in. ID 0.375 in. OD 0.500 in. Long Nylon Spacer (am-1697)
10 -0.194 in. ID 0.375 in. OD 0.250 in. Long Nylon Spacer (am-1700)
1 - Power String, 1.4MM, 100' Spool (am-3159)
1 - 6 mm D to 0.375 Hex Adapter (am-3444)
3 - 0.192 in. ID 0.375 in. OD 0.750 in. Long Nylon Spacer (am-4107)
1 - 13.7 : 1 NeveRest Orbital Gearmotor (am-4610b)
40 - 5 mm ID 13 mm OD Shielded Bearing (695ZZ) (am-4724)
6 - 4 in. Long 0.5 in. x 0.5 in. Robits Tube (am-5001-0400)
2 - 6 in. Long 0.5 in. x 0.5 in. Robits Tube (am-5001-0600)
2 - 10 in. Long 0.5 in. x 0.5 in. Robits Tube (am-5001-1000)
20 - Robits L Gusset (am-5004_2x3)
4 - Robits 2 x 4 Plate Gussets (am-5006_2x4)
1 - Robits Motor Mount Bracket (am-5012)
4 - 14 in. Long 1 in. x 0.5 in. Robits Tube (am-5026-1400)
2 - Robits Spool (am-5027)
1 - 10-32 x 2 in. SHCS (am-1049)
2 - 10-32 x 3 in. Socket Head Cap Screw (am-1522)
2 - 10-32 Threaded 1 in. Long 0.375 in. Dia. Standoff (am-1701)
8 - 1.5 in. x 0.5 in. x 0.5 in. Robits Tube (am-5001-0150)
2 - Robits 1x4 Beam (am-5011_1x4)
1 - Robits 1.56 in. Long Extension Spring (am-5169)
