These gears are the controlling factor for the SDS modules' drive gear ratios. The MK4 is compatible with all 4 drive gear ratios. The MK4i is available in ratios L1-L3. L1 and L2 ratios are the most popular ratios and are suitable for standard full-weight competition robots. The L3 ratio is more aggressive and is recommended for lightweight robots. The L4 ratio is very aggressive and is only recommended for very lightweight mini bots.
L1 Gear Ratio 8.14:1 (MK4/4i):
- 25T-50T 20DP Double Gear
- 19T 20DP 3/8 Hex Bore Gear
L2 Gear Ratio 6.75:1 (MK4/4i):
- 27T-50T 20DP Double Gear
- 17T 20DP 3/8 Hex Bore Gear
L3 Gear Ratio 6.12:1 (MK4/4i):
- 28T-50T 20DP Double Gear
- 16T 20DP 3/8 Hex Bore Gear

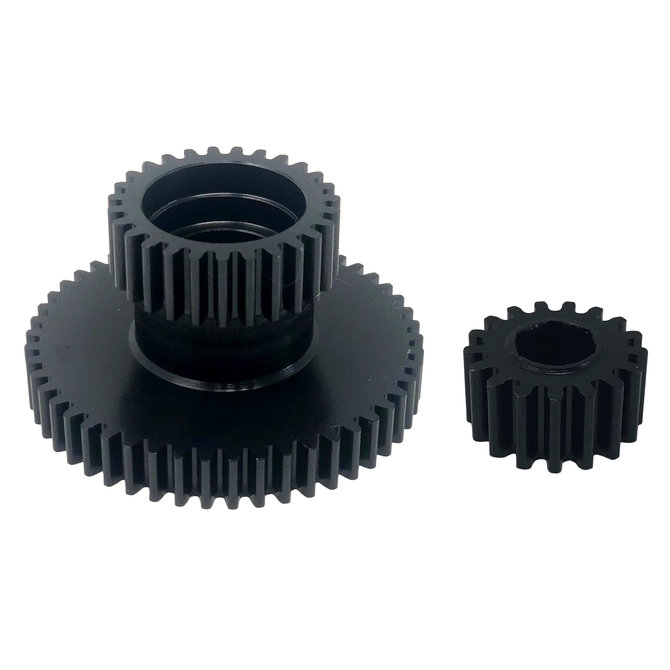

L4 Gear Ratio 5.14:1 (MK4):
- 28T-48T 20DP Double Gear
- 16T 20DP 3/8 Hex Bore Gear
