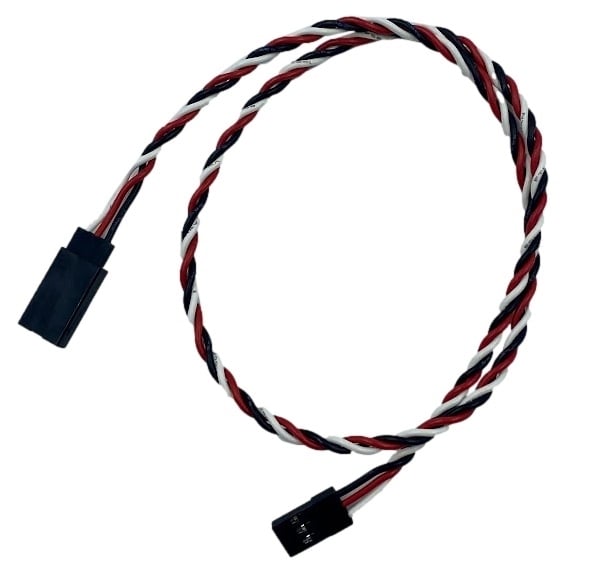

    Servo Extension Cable

    ·      450mm Length

    ·      3 position

    ·      TJC8 MH-FC on one end

    ·      TJC8 FH-MC on the other end

    ·      Twisted cable

    ·      Colors: White, Red, Black (red in middle)

    ·      24AWG Guage

    MFR Part #: 70188
    $6.74
