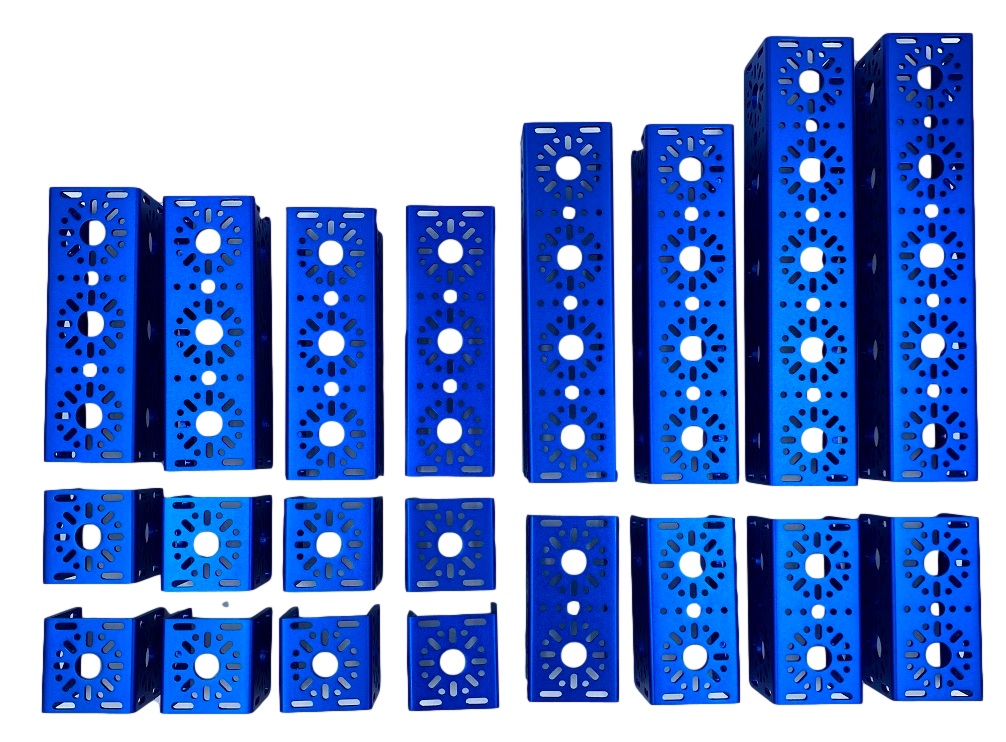

    Small Channel Pack

    Be the first to review this product

    Includes,

    • 2 - 240mm U-Channel  76014
    • 2 - 192mm U-Channel  76015
    • 2 - 144mm U-Channel  76016-2
    • 2 - 96mm U-Channel  76017-2
    • 4 - 48mm U-Channel  76018-2
    MFR Part #: 70251
    $181.69
    In stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
