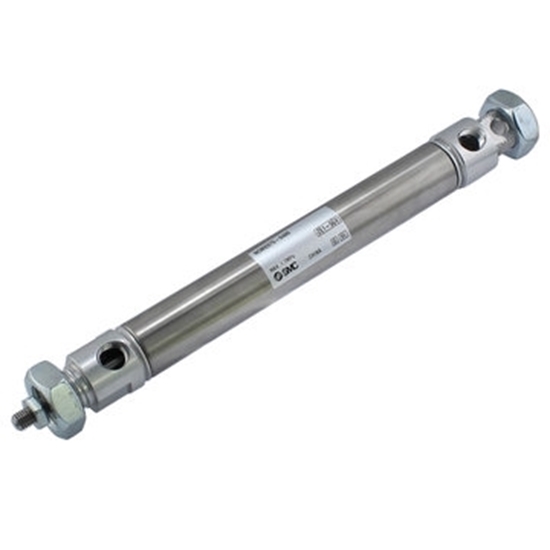

    SMC Double Acting Single Rod 3/4 in. Bore Air Cylinders Different Lengths (4 inch)

    These double acting single rod stainless steel cylinders are a solid choice when you want air actuated motion. These cylinders have a strong 0.75 in. thick bore and are available in multiple stroke lengths.

    MFR Part #: am-2034_4
    $48.00
    2 in stock

    Specifications

    • Bore: 3/4 in.
    • Manufacturer: SMC
    • Manufacturer Part #: NCME075-[stroke length]
    • Nose Thread: 5/8-18
    • Pivot Point: Rear
    • Port(s): 1/8 in. NPT
    • Retracted Overall Length: 5.1 in., 6.5 in., 8.5 in., 10.5 in., 11.5 in.
    • Rod Thread: 1/4-28
    • Stroke: 0.5 in., 2 in., 4 in., 6 in., 7 in.

    Documents

    CAD File(s)

    am-2034_2.STEP

    am-2034_4.STEP

    am-2034_6.STEP

    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Specifications

    • Bore: 3/4 in.
    • Manufacturer: SMC
    • Manufacturer Part #: NCME075-[stroke length]
    • Nose Thread: 5/8-18
    • Pivot Point: Rear
    • Port(s): 1/8 in. NPT
    • Retracted Overall Length: 5.1 in., 6.5 in., 8.5 in., 10.5 in., 11.5 in.
    • Rod Thread: 1/4-28
    • Stroke: 0.5 in., 2 in., 4 in., 6 in., 7 in.

    Documents

    CAD File(s)

    am-2034_2.STEP

    am-2034_4.STEP

    am-2034_6.STEP
