    Fischertechnik

    View as Grid List
    Sort by
    Display per page

    U-Girder 150 Black

    #32854
    $2.75 $2.63

    32854: U-Girder 150 Black

    X-Strut 42,4

    #38542
    $0.46 $0.44
    ( 0 In stock)

    38542: X-Strut 42,4

    32985: fischertechnik Base Plate for Sorting Box

    #32985
    $4.95
    ( 0 In stock)

    fischertechnik Base Plate for Sorting Box helps keep your fischertechnik components secure. Use this base plate to line your fischertechnik Sorting Box 500 (258 x 186m).

    fischertechnik Box 1000

    #30383FT
    $63.03 $60.19

    Practical storage box with eight sorting boxes and 32 sorting partitions. The cover also serves as the big building board 390 x 270 mm.



    fischertechnik Creative Box 1000

    #91082
    $129.00 $161.55
    ( 0 In stock)

    The perfect addition to any fischertechnik collection. A deluxe storage box filled with more than 600 components from the current fischertechnik assortment of individual parts. NOTE: Assembly instructions not included.

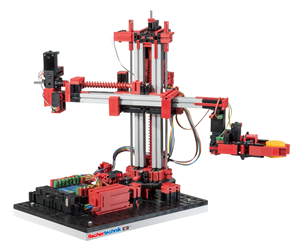

    fischertechnik 3-D Robot 24V for use w/PLC (not included)

    #511938
    $1136.16 $1084.99

    fischertechnik Industrial Simulation Robot - in 9 V and 24 V Versions
    3-axis robot with gripping device.



    Degrees of freedom:



    • Shaft 1: Rotation 180°
    • Shaft 2: Forward/back 90 mm
    • Shaft 3: Up/down 150 mm

    Scope of Delivery:

    • 4 DC motors, including 2 with integrated magnetic encoder (Max. pulse frequency: 1 kHz)
    • 4 Limit switches, 2 pulse sensors for path measurement
    • 8 Digital inputs
    • 8 Outputs, 9V –.../24V –... (4 Motors clockwise/counterclockwise rotation, 24V version incl. relay board for motor polarity reversal)
    • Large model: approx. 390x200x30 mm (LxWxH).
    • Model mounted on stable wooden board.
    • Robotics TXT Controller included with 9 V version ONLY. 24 V version has screw terminals and requires PLC.
    • Model can be ideally combined with conveyor belt, punch press and intermittent assembly line.


    9 V version requires Power Set #91087 or Power Supply #122952 for operation (Not Included). 24 V version requires PLC (not included).

    fischertechnik 3-D Robot 9V (fully wired with Robotics TXT Controller included)

    #511937
    $1533.26 $1464.21

    fischertechnik Industrial Simulation Robot - in 9 V and 24 V Versions
    3-axis robot with gripping device.



    Degrees of freedom:



    • Shaft 1: Rotation 180°
    • Shaft 2: Forward/back 90 mm
    • Shaft 3: Up/down 150 mm

    Scope of Delivery:

    • 4 DC motors, including 2 with integrated magnetic encoder (Max. pulse frequency: 1 kHz)
    • 4 Limit switches, 2 pulse sensors for path measurement
    • 8 Digital inputs
    • 8 Outputs, 9V –.../24V –... (4 Motors clockwise/counterclockwise rotation, 24V version incl. relay board for motor polarity reversal)
    • Large model: approx. 390x200x30 mm (LxWxH).
    • Model mounted on stable wooden board.
    • Robotics TXT Controller included with 9 V version ONLY. 24 V version has screw terminals and requires PLC.
    • Model can be ideally combined with conveyor belt, punch press and intermittent assembly line.


    9 V version requires Power Set #91087 or Power Supply #122952 for operation (Not Included). 24 V version requires PLC (not included).

    fischertechnik Accu Set 110V

    #57487
    $94.55 $90.29

    Battery charger with microcontroller for reliable protection from overcharge. Very short recharging time, max 2 hours. High-powered NiMH Accu Pack with short-circuit protection, 8.4V/1500 mAH.

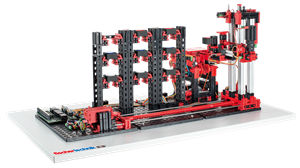

    fischertechnik Automated High Bay Warehouse 24V Version (For use with PLC which is required but not included)

    #536631
    $1456.05 $1390.47

    Transfer station with conveyor belt, with shelf stacker for storing and retrieving special workpiece carriers, and 9 storage spots. Fully assembled training model, wired to pre-programmed fischertechnik ROBOTICS TXT Controller.

    fischertechnik Conveyor Belt 24V

    #50464
    $297.83 $284.41

    Conveyor belt simulates the transport of the workpieces



    Transport belt with a length of 275 mm transports workpieces with a diameter of up to 29 mm. Several conveyor belts can be connected to each other to form an endless conveyor belt. The model is ideally combinable with the training model "3-axis robot with gripper".



    Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.



    Technical details:



    • Inputs digital: 3
    • Outputs 24V: 1

    fischertechnik Factory Simulation 24V

    #536634
    $5294.72 $5056.25

    Automated training and simulation factory

    Advantages:

    • Ideal training, simulation and demonstration model for training and industrial automation
    • Already completed, stable training model
    • Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
    • Optionally available in the 9V standard voltage as well as in the worldwide 24V industrial standard
    • REQUIRES a PLC for 24V operation

    fischertechnik Factory Simulation 9V

    #536629
    $6830.62 $6522.97

    The fischertechnik Factory Simulation combines four models --Vacuum Gripper Robot, Automated High Bay Warehouse, Multi-Processing Station with Oven, and the Sorting Line with Color Detection--into one self-contained material cycle.

    Workpieces are retrieved from the Automated High Bay Warehouse using the Vacuum Gripper Robot, and then moved to the Multi-Processing Station with Oven. After the workpiece has been processed by this machine, it is then sorted by color in the Sorting Line with Color Detection, before being again moved by the Vacuum Gripper Robot to the Automated High Bay Warehouse for storage. Pre-assembled training model, wired to 5 fully programmed fischertechnik ROBOTICS TXT Controllers.

    fischertechnik micro:bit F5 Adapter

    #171850
    $35.00

    The adapter board has 8 outputs and 6 inputs.

    Motor Set XM

    #505282
    $63.03 $60.19

    fischertechnik Motor Set XM is a high performance geared motor in compact plastic casing with numerous possibilities for attachments. Includes many toothed gears, axles and gearbox parts.

    45 Individual parts

    Performance data: Voltage 9V –..., max. output 3.0 W at about 340 RPM.





    Multi Working Station with Furnace 24v

    #536632
    $1319.27 $1259.85

    Furnace with pneumatic sliding door. Downstream processing station with pneumatic transfer unit including vacuum gripper, cutter with rotary table, and conveyor belt. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

    Power Set 120V

    #91087
    $94.55 $90.29

    fischertechnik Power unit with infinitely variable control unit. Plug in Class-2 Transformer. Input AC 120 V 60 Hz 150mA. Output DC 9V 1A.
