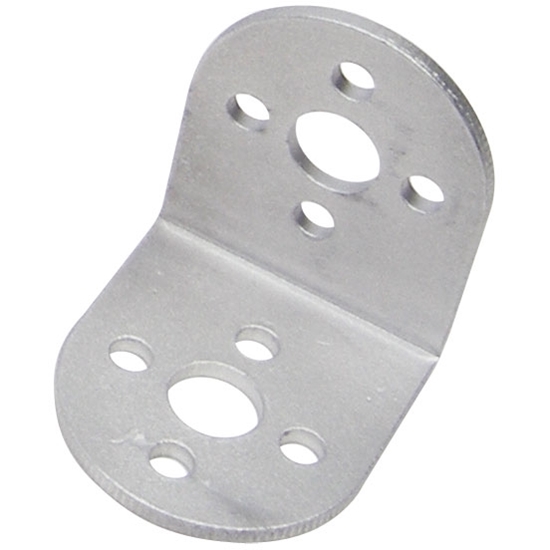

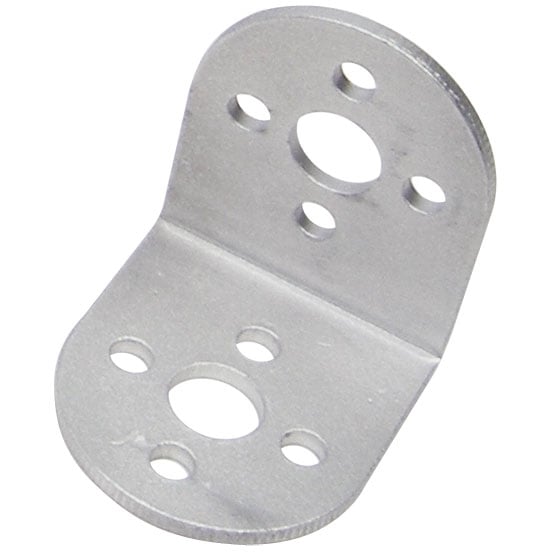

    Tetrix Max L Brackets pkg of 2

    TETRIX MAX L Brackets feaure 90º angles to connect structural elements. Made of heavy-duty aluminum.

    • Quantity: pkg of 2
    • Nominal Size: 27 mm x 31.5 mm x 31.5 mm
    • Material: 7005 Aluminum
    MFR Part #: 39062
    $10.42
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent
