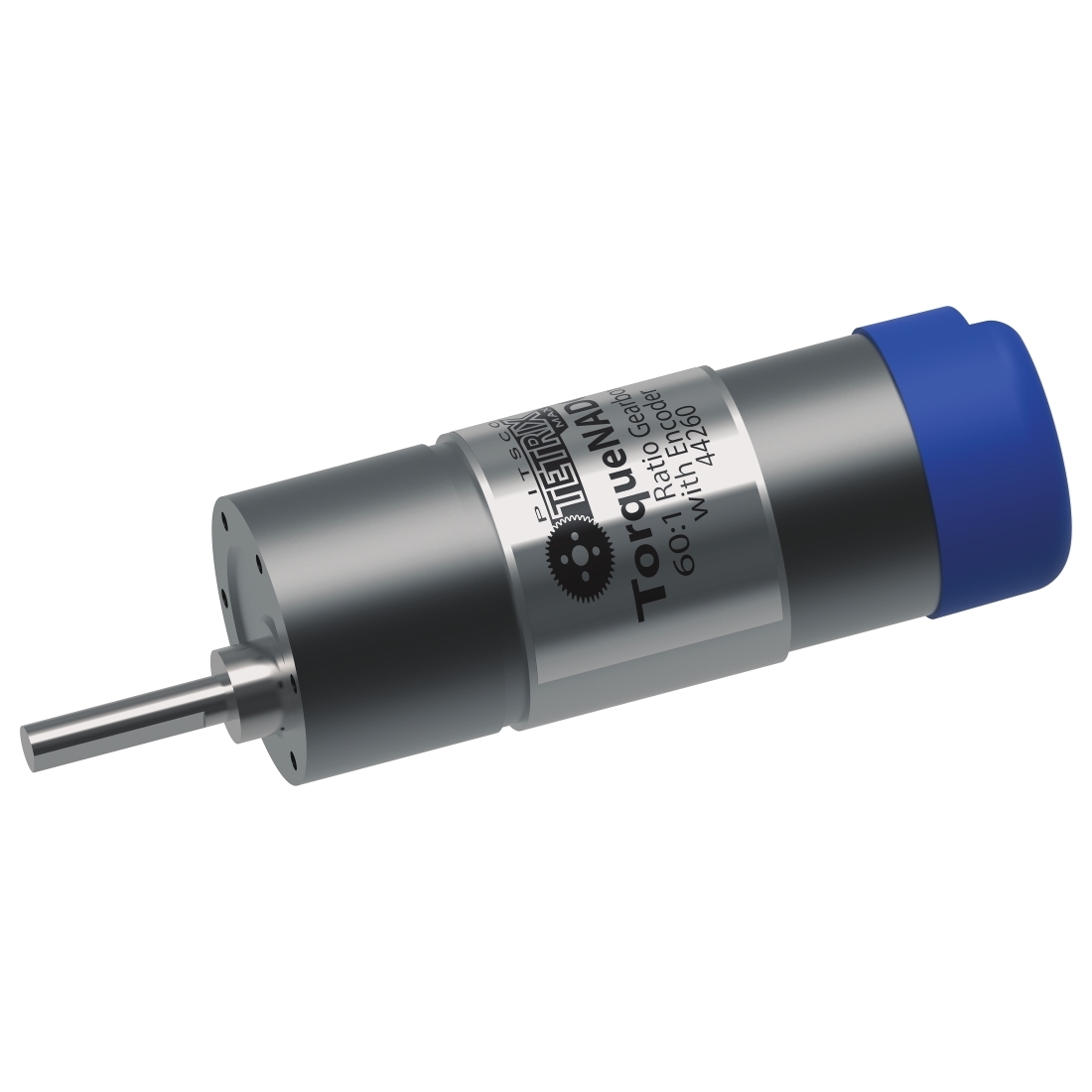

Tetrix Max TorqueNado Motor

These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

TETRIX MAX Motor Shaft Hubs attaches wheels and gears to motor shafts. Each hub comes with a screw and is made of heavy-duty aluminum.

• Quantity: pkg of 2
• Size: 6 mm
• Material: 7005 Aluminum
• Note: Includes 10-32 set screw

TETRIX MAX Motor Mount Pack attaches the DC Drive Motor to your robot. Includes the Motor Mount, two kep nuts, and two cap screws.

• Nominal Size: 72 mm x 12.7 mm
• Material: 7005 Aluminum

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File

The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.

Specifications:

• Material: Steel
• Number of teeth: 30
• Set of 2 for 1-1 drives
• Step File

This pack contains a noncontact distance measurement module that works at 42 kHz to transmit a digital signal to the TETRIX PRIZM Robotics Controller. The module detects the range of an object within 3 to 400 cm, enabling your robot to sense its surroundings. Comes with a mount, connecting sensor cable, and the hardware for attaching the sensor to the TETRIX hole pattern

Made from 3mm thick heavy 6061-T6 Aluminum, the Inside U Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

• Step File

Axle Hubs are used to attach gears and wheels to axles and axles to structural elements. Features heavy-duty aluminum construction.

• Quantity: pkg of 2
• Note: Includes 10-32 set screw
