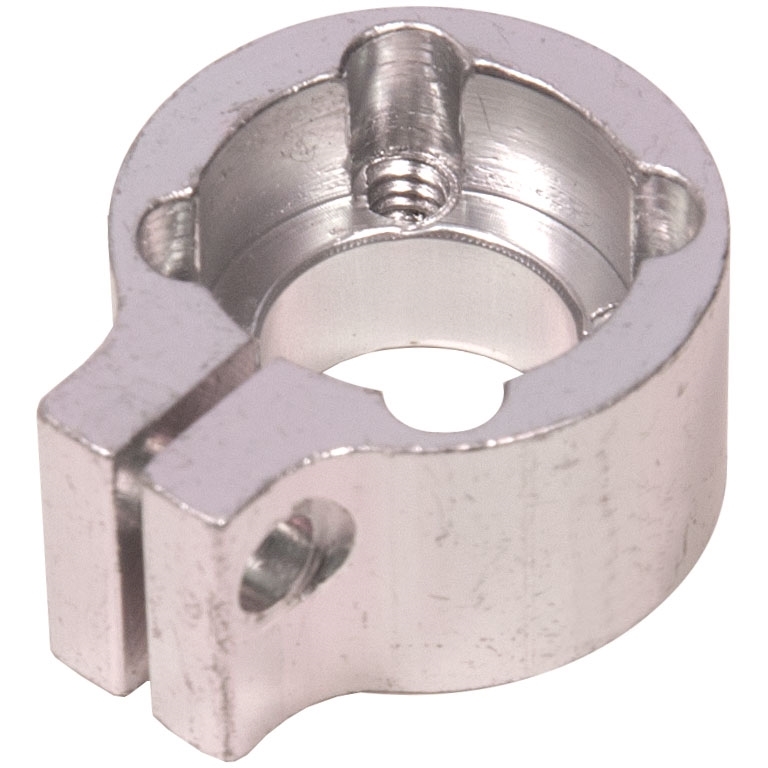

Tetrix Max Tube Clamps pkg of 2

Specifications:

• Material: Steel
• Coating: Hardened surface
• Inside Diameter: 5/16"
• Outside Diameter: 0.7"
• Thickness: 0.065"

This is a package of FOUR stick-on numbers, designed to be adhered to robot bumper material.

Specifications:

• Quantity: 4
• Material: White stick-on plastic
• Height: 4 inches
• Width: 2.6 inches
• Line width: 0.8 inch
• Weight: 0.004 pounds

Usage (for best application):

• Apply heat to cloth area using a heat gun or hairdryer for 30 seconds (prior to placing number). Do not put heat on or near pool noodles, as they will shrink.
• Place numbers in position on bumper material as desired with pressure.
• Apply heat to numbers using a heat gun or hairdryer for 30 seconds.
• Place under a static load for 5 minutes.

This gear is the CIM gear for the Toughbox and Toughbox Mini.

Specifications:

• Material: 4140 steel
• Diametral pitch: 20
• Pressure angle: 14.5
• Number of teeth: 14
• Pitch Diameter: 0.7 inch
• Bore: 0.314 inch (8mm) diameter, with 2mm keyway
• Thickness: 0.50 inch
• Weight: 0.05 pound

Machine Key, steel. Used in 2.5" CIM Motor shafts.

Specifications:

• Width: 2mm (0.078 inch)
• Length: 10mm (0.394 inch)
• Weight: 0.0008 pounds

This retainer clip is used to hold objects (such as gears) in place on shafts.

Example: This product can be used to hold a gear onto a CIM motor shaft.

Specification:

• Material: Steel
• Inner Diameter: 8mm
• Outer Diameter: 15mm
• Weight: Less than 0.001 lbs

This is a package of FOUR stick-on numbers, designed to be adhered to robot bumper material.

Specifications:

• Quantity: 4
• Material: White stick-on plastic
• Height: 4 inches
• Width: 2.6 inches
• Line width: 0.8 inch
• Weight: 0.004 pounds

Usage (for best application):

• Apply heat to cloth area using a heat gun or hairdryer for 30 seconds (prior to placing number). Do not put heat on or near pool noodles, as they will shrink.
• Place numbers in position on bumper material as desired with pressure.
• Apply heat to numbers using a heat gun or hairdryer for 30 seconds.
• Place under a static load for 5 minutes.

This is a package of FOUR stick-on numbers, designed to be adhered to robot bumper material.

Specifications:

• Quantity: 4
• Material: White stick-on plastic
• Height: 4 inches
• Width: 2.6 inches
• Line width: 0.8 inch
• Weight: 0.004 pounds

Usage (for best application):

• Apply heat to cloth area using a heat gun or hairdryer for 30 seconds (prior to placing number). Do not put heat on or near pool noodles, as they will shrink.
• Place numbers in position on bumper material as desired with pressure.
• Apply heat to numbers using a heat gun or hairdryer for 30 seconds.
• Place under a static load for 5 minutes.

This fastener is used with Panel Links to connect panels for a FIRST Tech Challenge Perimeter.

Tetrix Max Zip Tie Pack includes 11" flexible, nylon cable ties.

Includes,

• 1 - 24 Tooth - Sprocket (2 pack)  76226-2
• 1 - 32 Tooth - Sprocket (2 pack)  76227-2
• 2 - 40 Tooth - Sprocket  76228
• 2 - 48 Tooth - Sprocket  76229
• 1 - #25 Chain with Master Links, 5 feet(152cm) 76230
• 2 - 6mm Shaft Hub (4 pack)  76284-4
• 1 - Bushing Bronze 6mm ID x 8mm OD (12 Pack)  76300-12
• 1 - Bushing Bronze 6mm ID x 14mm OD (12 Pack)  76301-12
• 1 - Flange Bearing  6mm ID, 14mm OD, 15mm Flange (12 Pack)  76302
• 1 - Chain Breaker Tool  76231
• 1 - M3 x 12mm Socket Head Cap Screw (pack of 100)  76202-100
• 2 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)  76304-6
• 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24
