The Power Drawbar Kit supplies a pneumatic power drawbar that increases productivity and efficiency through push-button tool changes.

The Passive Probe Kit is an economical probe that quickly and automatically sets work offsets using PathPilot’s integrated probing routines.

The Replacement Probe Tip is compatible with Renishaw M4 stylus family

Works with Active and Passive probes PN 31858, PN 32309,PN 32310, and PN 39295. Also works with Discontinued Model PN 30668.

Standard 5/8 in. Keyless Drill Chuck.

Fits JT6 arbor.

TTS Drill Chuck Arbor: JT2

Arbor for mounting JT2 taper (Jacobs Taper #2) chucks

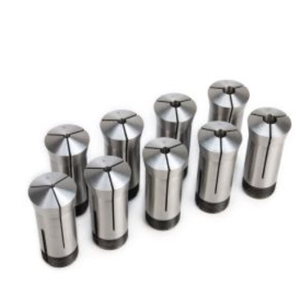

The 5C Round Collet Set (18 Pcs.) is an 18 Piece 5C round collet set that covers 1/16 in. to 1-1/8 in. nominal diameters (1/16 in. increments).

The 770MX is equipped with a trio of servo motors, an encoder for rigid tapping, and a BT30 spindle. Faster travel speeds cut down program times, and a beefier spindle chews through aluminum, titanium, hardened steels, and alloys without a concern of tool pullout.

The 770MX Premium Package includes a stand, enclosure, power drawbar, automatic tool changer, PathPilot operator console, automatic oiler, tooling, and more.

Includes:

770MX Mill

770MX / 770M Stand

770MX Chip Tray

770MX Enclosure Kit

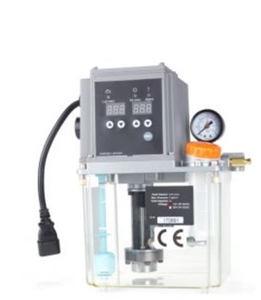

Automatic Oiler Kit (115V) for 770M / 770MX

Machine Way Oil (1 Gallon)

Lifting Bar Kit

770MX Owner's Kit

Flood Coolant Kit (1/8 HP) for 1100M/MX and 770M/MX

QualiChem XTREME CUT 251C

770M/M+/MX PathPilot Operator Console

Automatic Tool Changer for the 770MX (BT30)

Waterproof Mouse

Waterproof Mini-Keyboard

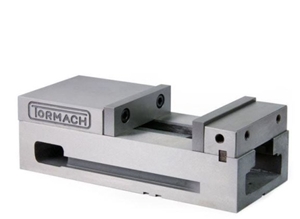

5 in. (127 mm) CNC Vise

Clamp Kit for 5/8 in. T-Slots (58 Pcs.)

5 in. (127 mm) Parallel Set

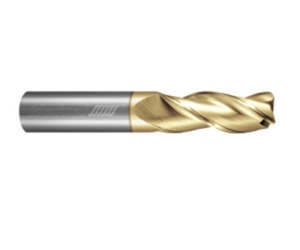

End Mill Kit for Aluminum #1

1/16 in. - 1/2 in. Machine Length Drill Set

BT30 Operator's Kit (Inch)

The 8L Deluxe Package builds off of the Entry Package with the addition of a robust stand with integral coolant tank, separate chip drawer for easy chip removal, storage drawers, and optional side shelving, as well as controller arm, LCD monitor, waterproof mouse and keyboard, deluxe professional lathe tool kit and OXA tool holder kit.

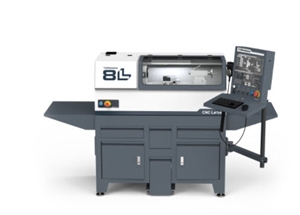

The 8L is a native 5C lathe that offers a 1.5 HP (1.11 kW) spindle that runs at 180-5000 RPM. It comes with a fully assembled enclosure as part of the base model. The footprint remains small, ringing in at 26 in. x 50 in., and the lathe itself is attached to a hand-scraped 140 pound cast base.

• Motor: 1.5 HP Single-Phase
• Swing over bed: 8 in.
• Swing over carriage: 4 in.
• Distance between centers: 15 in.
• Spindle bore: 1.25 in.
• Spindle type: 5C
• Speeds: 180-5000 RPM
• Tailstock taper: MT2
• Tailstock barrel travel: 2.2 in.
• Shipping weight: 1000 lbs.

What's Included?

• 8L Lathe
• 8L Lathe Stand
• PathPilot Control
• PathPilot Controller VESA Mount
• Machine Owner's Kit
• Controller Arm
• Waterproof Mini-Keyboard
• Waterproof Mouse
• Jog Shuttle Controller
• Standard LCD Monitor
• 0XA Tool Holder Kit for 8L
• Deluxe Professional Lathe Tool Kit

Note: This item will incur additional freight charges that will be quoted.

Take the 8L Deluxe Package and move on up with the newly-designed 8L PathPilot Operator Console, and the 8L machine stand coolant kit. You’ve got everything needed to face, turn, bore, and groove. Plus you can cut it off and do it all over again. Ready to start cutting?

he 8L is a native 5C lathe that offers a 1.5 HP (1.11 kW) spindle that runs at 180-5000 RPM. It comes with a fully assembled enclosure as part of the base model. The footprint remains small, ringing in at 26 in. x 50 in., and the lathe itself is attached to a hand-scraped 140 pound cast base.

• Motor: 1.5 HP Single-Phase
• Swing over bed: 8 in.
• Swing over carriage: 4 in.
• Distance between centers: 15 in.
• Spindle bore: 1.25 in.
• Spindle type: 5C
• Speeds: 180-5000 RPM
• Tailstock taper: MT2
• Tailstock barrel travel: 2.2 in.
• Shipping weight: 1000 lbs.

What's Included?

• 8L Lathe
• 8L Lathe Stand
• 8L Lathe PathPilot Operator Console
• Machine Owner's Kit
• Waterproof Mini-Keyboard
• Waterproof Mouse
• 0XA Tool Holder Kit for 8L
• Deluxe Professional Lathe Tool Kit
• 4 in. Precision 3-Jaw Chuck (5C Mount)

Note: This item will incur additional freight charges that will be quoted.

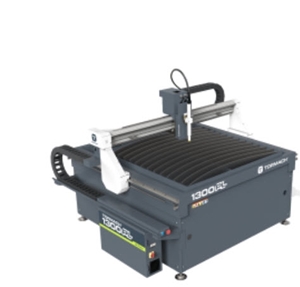

The Entry Package for the 1300PL Plasma Table has the basics that you will need to get started. This package includes plasma table, controller, and owners kit.

Priced Starting at $23.550

Some assembly required.

Plasma cutting heavyweight with ultra fast rapids, digital torch height control and the same PathPilot control system used on every Tormach machine.

Includes:

1300PL Plasma Table

1300PL Owner's Kit

PathPilot Controller - Rev. C

Standard LCD Monitor

Waterproof Mini-Keyboard

Waterproof Mouse

Jog Shuttle Controller

Powermax45 XP Hypertherm Plasma Cutter

Hypertherm Shade 5 Goggles

Note: This item will incur additional freight charges that will be quoted.

PathPilot Controller Arm Mount, Vertical

The Touch Screen Kit allows you to Conveniently operate PathPilot through a LCD resistive touch screen.

Can also be used when hard drive is replaced on controller.

The Haimer CENTRO Precision Centering Device for holes, bores, shafts and circular bosses - TTS Holder Not Included

3-Piece Steel Boring Bar Set, Right-handed for the 8L Lathe

8L Lathe Tool Holder Package

Kit contains the following items:

• 7 - PN 30705 - Turning & Facing Tool Holder (Size 0XA)
• 1 - PN 30707 - Boring Bar Holder
• 2 - PN 30708 - MT2 Tool Holder
• 2 - PN 31082 - MT2 Arbor
• 2 - PN 30245 - Keyless Drill Chuck 3/8”
