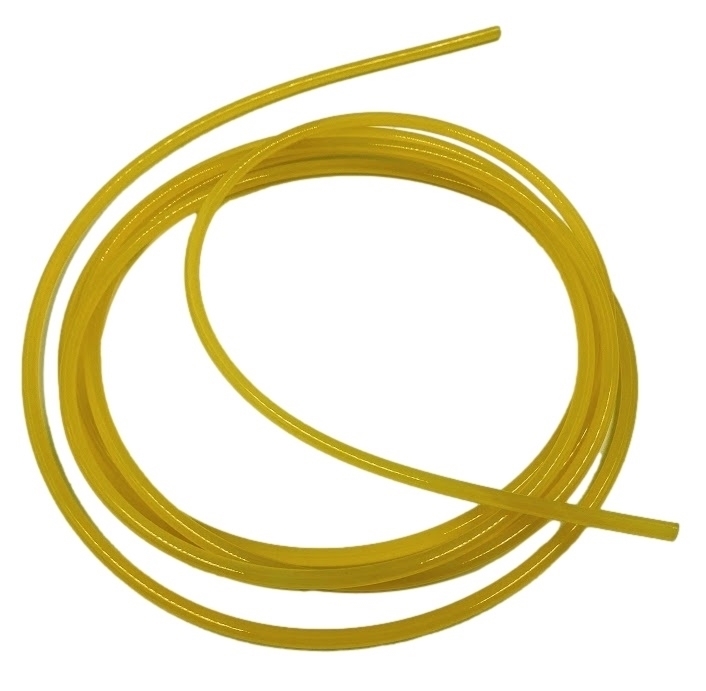

Urethane 5mm Round Belt, 3m length

The Servo Standard Front Mounting Bracket is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

• Step File

The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

• Step File

·      450mm Length

·      3 position

·      TJC8 MH-FC on one end

·      TJC8 FH-MC on the other end

·      Twisted cable

·      Colors: White, Red, Black (red in middle)

·      24AWG Guage

Φ29.0mm*16.0mm thick
6*M3 thread tapping through
(including 2*M3 thread for M3 SHCS)
Φ6.0mm D hole
AL6061-T6

This 20 Amp fuse is used in FIRST Tech Challenge batteries and the FIRST Robotics Competition Power Distribution Panel (am-2856).

Specifications:

• Color: Yellow
• Amps: 20
• Max Voltage: 32
• Style: MINI®
• Specification: SAE J2077
• Type: Blade Fuse

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Programming the Smart Servo using the Smart Servo Programmer

CAD File

• Step File

The Studica Fast Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Fast Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

• Step File

Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.

Specifications:

• Material: Steel
• Number of teeth: 30
• Set of 2 for 1-1 drives
• Step File

Spare sets screws for Studica Robotics Hubs and Collars

10 Pack CONE HEX SOCKET SET SCREW DIN 914 M3 Thread

• 3 mm Long
• 1.5 mm Hex Socket
• 2 mm Socket Depth
