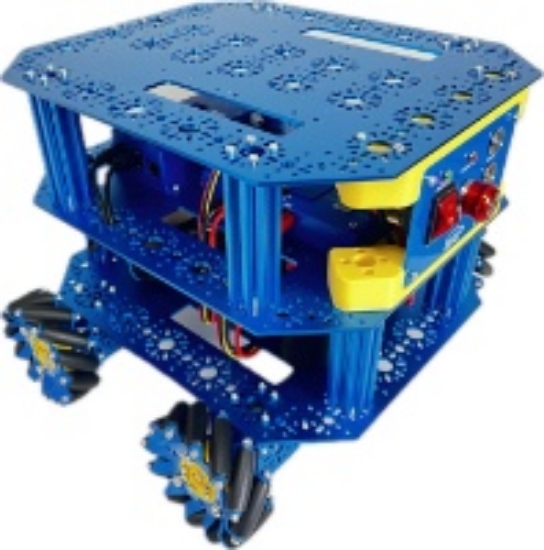

VMX FRC Training Bot

Be the first to review this product

The Studica VMX FRC-compatible Training Bot (FRC Trainer) is a smaller, sturdy, lightweight, and less expensive robot than your typical FRC robot. If you have a large FRC team, often only a handful of students get to learn how to create and program your team’s costly competition robot. The FRC Trainer solves this problem and is ideal for groups of two to three to participate in hands-on learning in a classroom environment. Schools can equip their labs with multiple FRC Trainers, benefiting from the great value and compact size. Students can even take it home with them!

This affordable solution is intended for:

FRC teams that want to learn and train on a smaller and more affordable robot,
Schools looking for a way to teach FRC robotics in the classroom.
Schools that want to teach coding in the classroom through robotics.

The FRC-compatible Trainer is an intelligent and autonomous robot that uses the VMX Advanced Robotics Controller which can be programmed in C++ and Java. VMX’s multitude of modern digital communications interfaces and Linux-based operating system allow users to directly access most modern devices (e.g., Intel RealSense tracking and depth cameras and LIDAR).

Download BOM here

MFR Part #: 74000

Request a Quote

Qty:

Specifications
Reviews

Benefits for FRC Training/Robotics Programs/Research

The FRC platform is an extremely open environment – allowing teams to use off-the-shelf, cutting-edge technologies. The FRC Trainer can be used by,

Drive Team: Since the FRC Driver station and Dashboard are included, this means new drive teams can immediately become familiar with the tools they will use in competition – before the competition robot is built.
Electrical Team: Electrical students can learn hands-on, the key wiring concepts and skills before the using the competition robot.
Teachers: Won’t have to design/create custom solutions for teaching programming to FRC students. Educational material for teaching robotics will be included.
Competition Co-Processor:
- The on-board VMX Co-Processor and Robotics Controller can be powered directly from a 12V battery and is legal for competition use as a vision/motion co-processor.
- Ideal for Software-focused competitions using the WPI Library.
- Rich software available on the VMX platform is ideal for Higher Education research projects.

Key Technologies include:

Highly integrated, inexpensive, Wi-Fi-enabled, multi-core Linux computer with plenty of USB IO for expansion (e.g., Raspberry Pi 4B)
32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
Low-cost MEMs Inertial Measurement Unit (IMU)
Powerful software providing rich libraries and tools for developing robot software in C++, Java (e.g., the WPI Library)
The CAN bus for high-speed, real-time communication between devices.

FEATURES:

Includes:

2 x 12V 3000mAh batteries
Battery charger
Remote Control Gamepad Device
Zero to moving curriculum
Assorted cables and connectors
Extra mounting hardware

Specifications:

Size: 16” x 13.5” x 6”
Controller: Studica VMX Robotics Controller
Motor Driver: Studica Titan Quad (A powerful, 4-channel CAN-based motor controller with built-in fuse-box (for DC motors up to 20A)
Motors: Studica Maverick

Controller:

Powered by Raspberry Pi 4 (4GB)
Mimics the roboRIO (exludes LabVIEW programming)
Supports CAN 2.0B bus
Uses WPILIB; programmable w/VSCode IDE; compatible with 3^rd-party vendor extensions
Built in radio (from Raspberry Pi 4)
Built in NavX-sensor IMU
Supports C++
Supports Java

Motors:

Voltage: 12 VDC
Gear Ratio: 61:1
Speed: 100 RPM
Stall Torque: 902 oz/in
Stall Current: 13A
Built in Encoder: Yes

Wheels:

100 mm Mecanum Wheels
Integrated 6mm hub
Rollers have a 50A durometer to give extra grip

Motor Driver:

Supports up to 4 DC Motors
Each motor can handle 20A Continuous
Acts as PDP and will power the VMX Controller
Includes built in 32Bit LED controller to control two strips of LED’s

Optional Add-ons (coming soon):

Elevator Lift
Intake
Shooter
