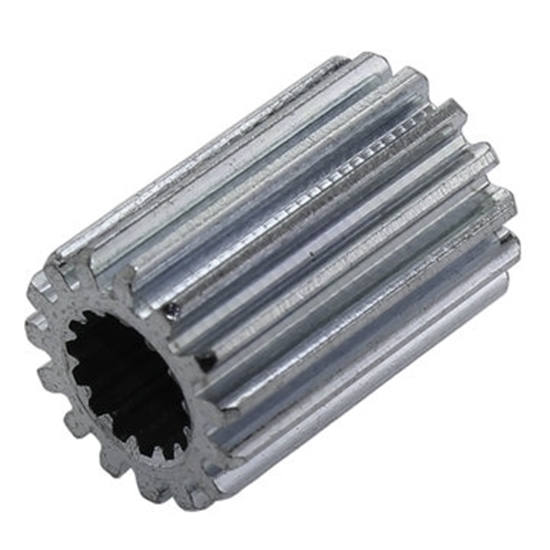

    15 Tooth 32 DP Falcon Spline Bore Steel Pinion Gear

    This 15T 32DP steel gear is used as the input pinion gear for the EVO Shifter , EVO Slim for CIM gearboxes, and can also be used as the steering input gear for the Swerve Drive Specialties MK4 Module to allow a Falcon 500 motor to be used as the steering motor.



    # Pièce: am-4148
    $16,00
    19 en stock

    Specifications

    • Bore: Falcon Spline
    • Diametral Pitch: 32
    • Face Width: 0.75 in.
    • Material: 1117 Steel
    • Pitch Diameter: 0.469 in.
    • Pressure Angle: 20 Degrees
    • Teeth: 15
    • Thickness: 0.75 in.
    • Weight: 0.029 lbs

    Documents

    Layout Print(s)

    am-4148 15T 32DP Spline {motor} Gear.PDF

    am-4148a 15T 32DP Gear Spline Bore Falcon 500 Pinion with Counterbore WEBPRINT.PDF

    CAD File(s)

    am-4148 15T 32DP Gear Spline Bore Falcon 500 Pinion.STEP

    am-4148a 15T 32DP Gear Spline Bore Falcon 500 Pinion with Counterbore.STEP

    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent

    Specifications

    • Bore: Falcon Spline
    • Diametral Pitch: 32
    • Face Width: 0.75 in.
    • Material: 1117 Steel
    • Pitch Diameter: 0.469 in.
    • Pressure Angle: 20 Degrees
    • Teeth: 15
    • Thickness: 0.75 in.
    • Weight: 0.029 lbs

    Documents

    Layout Print(s)

    am-4148 15T 32DP Spline {motor} Gear.PDF

    am-4148a 15T 32DP Gear Spline Bore Falcon 500 Pinion with Counterbore WEBPRINT.PDF

    CAD File(s)

    am-4148 15T 32DP Gear Spline Bore Falcon 500 Pinion.STEP

    am-4148a 15T 32DP Gear Spline Bore Falcon 500 Pinion with Counterbore.STEP
