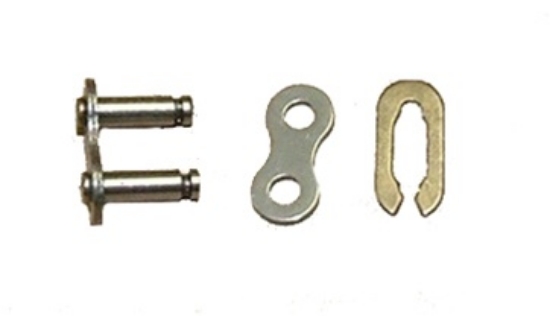

#25 Connecting Link for Roller Chain

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound

#25 Half Link. Also known as #25 Offset Link.

Specifications:

• Material: Steel
• Style: Roller Chain with interted pin
• Type: Half Link
• Size: #25
• Pitch: 0.25 inch
• Weight: 0.01 lbs

#35 Connecting Link (Master Link)

Specifications:

• Material: Steel
• Style: Roller Chain - Spring Clip
• Type: Connecting Link
• Size: #35
• Pitch: 0.375 inch
• Weight: 0.01 lbs

We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.

On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.

Specifications

• Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
• Material: 6061-T6 Aluminum
• Thickness: 0.125 in

Documents

Layout Print(s)

am-3860 90 Gusset REV2.PDF

am-4158 1IN Tee Gusset.PDF

am-4159 1IN Quad Gusset.PDF

am-4160 1IN 30deg Gusset.PDF

am-4161 1in 45deg Gusset.PDF

am-4162 1in 60deg Gusset.PDF

am-4163 1in 120deg Gusset.PDF

am-4164 1in 135deg Gusset.PDF

am-4165 1in 150deg Gusset.PDF

am-4166 1IN Sport Double Bearing Mount.PDF

am-4167 1IN 57Sport Side Mount Gusset.PDF

am-4168 1IN Bearing Side Mount Gusset.PDF

CAD File(s)

am-3860 90 Gusset REV2.STEP

am-4158 1IN Tee Gusset.STEP

am-4159 1IN Quad Gusset.STEP

am-4160 1IN 30deg Gusset.STEP

am-4161 1in 45deg Gusset.STEP

am-4162 1in 60deg Gusset.STEP

am-4163 1in 120deg Gusset.STEP

am-4164 1in 135deg Gusset.STEP

am-4165 1in 150deg Gusset.STEP

am-4166 1IN Sport Double Bearing Mount.STEP

am-4167 1IN 57Sport Side Mount Gusset.STEP

am-4168 1IN Bearing Side Mount Gusset.STEP

This new custom designed collar clamp has been designed specifically with FIRST Robotics Competition teams in mind. This product is Out of Stock until Mid March

You asked, we listened! These 3" diameter HD (heavy-duty) solid-core Compliant Wheels are intended for manipulating objects where you need a little 'give' in your intake system. These wheels deform out of the way to allow rigid objects to be manipulated easily. This makes for high-performance intakes and internal conveyors. These wheels do not require the use of expensive hubs to be driven, thanks to their integrated high strength polycarbonate hubs - which are made from the same mold that creates our Hex Molded Spacers.

Different durometer ratings give each wheel unique characteristics. Green compliant wheels (35A durometer) are the softest and most compliant around objects, while maroon (45A) blue (50A) and black (60A) wheels are increasingly firm.

Specifications

• Bore: 0.375 in. Hex, 0.5 in. Hex, 5 mm Hex
• Color: Green, Black, Blue, Black
• Core Material: Polycarbonate
• Diameter: 3 in.
• Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
• Tread Material: TPU
• Weight: 0.12 lbs
• Overall Width: 1 in.

Documents

Layout Print(s)

am-3946 3IN 375Hex Compliant Wheel REV3.PDF

am-3945 3IN 500Hex Compliant Wheel REV3.PDF

am-4537 3in 5mm Hex Molded Compliant Wheel.PDF

CAD File(s)

am-3946 3IN 375Hex Compliant Wheel REV 3.STEP

am-3945 3IN 500Hex Compliant Wheel REV 3.STEP

am-4537 3in 5mm Hex Molded Compliant Wheel.STEP

Specifications

• Flange: Unflanged
• Inside Diameter: 0.375 in.
• Outside Diameter: 0.875 in.
• Overall Thickness: 0.281 in.
• Seal Type: Shielded
• Style: Radial
• Weight: 0.03 lbs
• Width: 0.281 in.

Documents

Layout Print(s)

am-0516 0375IN ID bearing, shielded (R6ZZ) REV2.PDF

CAD File(s)

am-0516 0.375'' id bearing, shielded (R6ZZ).STEP

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

Whether you are building an elite custom drivetrain or a championship manipulator, you need your components to stay where they're supposed to. These lightweight spacers come in 3/8", 1/2", and 5 mm hex bores to accommodate the most common shaft types They can also be used on round shafts and bolts (5mm is great for #10 hardware!). If you need to space a lot grab some 1" spacers. If you need ultimate precision pick up some 0.063" spacers. Not sure which spacers you need? Keep a handful of all six sizes in your shop and never go hungry for spacers again!

These spacers are molded in black polycarbonate, a tough, crack resistant material that FIRST teams are familiar with. These spacers should resist stress cracking. If polycarbonate isn't rugged enough for your high load application or you need custom length spacers, check out our Aluminum Hex Spacer Extrusion.

Specifications

• Inside Diameter: 0.375 in. Hex, 0.50 in. Hex, 5 mm Hex
• Length: 0.063 in., 0.125 in., 0.188 in., 0.250 in., 0.375 in., 0.50 in., 1.00 in.
• Material: Polycarbonate
• Outside Diameter: 0.787 in. Round
• Weight: Up to 0.014 lbs

These custom designed collar clamps have been designed specifically with FIRST Robotics Competition teams in mind. The one-piece collar clamp is a nice fractional 1/2 in. width to make shaft stackups easy. The clamping force is provided by a 10-32 socket head screw, which is bigger than most used in the competition marketplace.  This provides a high-strength clamping solution that shouldn't strip out when you need it most. You can even replace the 10-32 screw if it becomes lost with the screws historically used in the AM14U family of chassis. These thoughtfully designed collar clamps also have small bosses on each side. This allows these collar clamps to be installed directly adjacent to an FR8ZZ Round or FR8ZZ Hex bearing without rubbing on the outer races for smooth operation.
