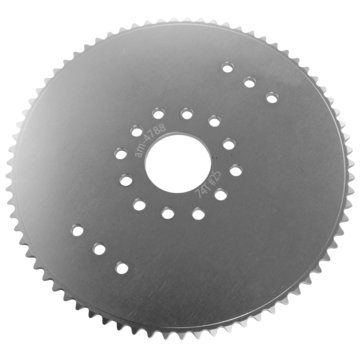

25 Series Bearing Bore Plate Sprockets - 74 Tooth

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

You asked, we listened! These 3" diameter HD (heavy-duty) solid-core Compliant Wheels are intended for manipulating objects where you need a little 'give' in your intake system. These wheels deform out of the way to allow rigid objects to be manipulated easily. This makes for high-performance intakes and internal conveyors. These wheels do not require the use of expensive hubs to be driven, thanks to their integrated high strength polycarbonate hubs - which are made from the same mold that creates our Hex Molded Spacers.

Different durometer ratings give each wheel unique characteristics. Green compliant wheels (35A durometer) are the softest and most compliant around objects, while maroon (45A) blue (50A) and black (60A) wheels are increasingly firm.

Specifications

• Bore: 0.375 in. Hex, 0.5 in. Hex, 5 mm Hex
• Color: Green, Black, Blue, Black
• Core Material: Polycarbonate
• Diameter: 3 in.
• Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
• Tread Material: TPU
• Weight: 0.12 lbs
• Overall Width: 1 in.

Documents

Layout Print(s)

am-3946 3IN 375Hex Compliant Wheel REV3.PDF

am-3945 3IN 500Hex Compliant Wheel REV3.PDF

am-4537 3in 5mm Hex Molded Compliant Wheel.PDF

CAD File(s)

am-3946 3IN 375Hex Compliant Wheel REV 3.STEP

am-3945 3IN 500Hex Compliant Wheel REV 3.STEP

am-4537 3in 5mm Hex Molded Compliant Wheel.STEP

Anderson Power Products Connector with 2 contacts.

Specifications:

• Material (APP Connector): Red Plastic
• Weight: 0.060
• Mounting holes: 0.15" diameter, 3/4" apart

Included Hardware:

• One - SB-50A red plastic connector
• Two - Anderson Power Products crimp contacts (sized for 6 gauge wire)

This Hub allows user that have existing Studica OMNI wheels (Part# 76260) or Mecanum Wheels (Part# 76243) to use REV Robotics 5mm Hex shafts and Hex Motors.

The Sushi Roller Intake Wheels are an excellent choice for robot intakes, internal conveyors, feeder mechanisms, or anywhere you need a durable, compact and grippy roller. These rollers are made with a robust polycarbonate hex bore hub, so no external hub is necessary - just slide them onto a hex shaft, constrain them axially and you are good to go. Available in a range of durometers for a wide variety of applications, these cute little rollers are great for getting a grip on things!

Specifications

• Bore: 0.5 in. Hex, 5 mm Hex, 0.375 in. Hex
• Core Material: Polycarbonate
• Diameter: 1 in.
• Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
• Tread Material: TPU
• Weight: 0.022 lbs
• Width: 1 in.

8 different offerings of our 25 Series Plate Sprockets. These are perfect for meshing with roller chain and finally getting that-thing-that-you-need-to-spin moving!

These aluminum sprockets work perfectly with any of our 6 hole hubs and mesh with #25 roller chain.  They also work with other build systems that use a 2 in. bolt circle for mounting. The larger versions also have a mounting pattern compatible with 2x1 box tube usefull for making arms.

A staple in any robotics team's shop - the 1/2" rounded hex shaft. This shaft allows you to drive hubs, pulleys and other 1/2" hex broached items while also fitting into a 13.75mm ID bearing with ease. This shaft comes in lengths of 36 inches so you can cut them down to the size you need.

Available in both 7075 (anodized black) or 6061 (not anodized) variants.

Includes a hole sized for #10 taps.

With custom hubs, this offering from SDS has competition-tested performance combined with seamless integration into the MK4 and MK4i Swerve Modules.

Colson Performa Wheels have been used extensively in BattleBots and FIRST Robotics Competitions, and are widely lauded as an intelligent choice for swerve. The durable co-injection molded construction of a thermoplastic elastomer tread permanently bonded to a polyolefin core helps ensure the wheel can withstand the rigors of robot competitions while being friendlier to non-carpeted surfaces and providing a more consistent performance throughout the life of the wheel compared to roughtop tread.

The aluminum hub is secured to the bevel gear using three screws which captures the wheel. This setup provides a simplified replacement process for heavy use during competition season.

Included Components in am- 5173:

• 3 - Black Oxide 10-32 1 in. Long Cap Screw (Similar to am-1056)
• 1 - Hub
• 1 - Colson Wheel (am-5171)

Specifications

• Brand: SDS
• Diameter: 4 in.
• Width: 1.5 in.

A West Coast style drivetrain can be finicky to create without precision machining capabilities. This Bearing Block Kit makes it much more accessible for teams to create high performance West Coast Drive style platforms with limited fabrication resources. Simply drill a clearance hole for a shaft to pass through your drive rail, pull your chain or belt tight, and clamp it down with the included hardware. Featuring machined pockets to capture 10-32 Nylock Nuts, these blocks can be used and reused without worrying about damaging threads upon installation. Because each block is the same part, you can keep the screw heads pointing to the outside of your robot for easy maintenance.

This unassembled kit ships with enough hardware to provide significant clamping pressure to help keep your powertrain components tensioned properly, and can withstand upwards of 1500lbs of force along the axis of the tube when properly installed. This means that for most FRC use cases, a team can install these without the need for tensioning devices to keep things aligned.

The AndyMark West Coast Drive Bearing Block Kit is designed to be used with flanged ball bearings with a 1.125" outer race, such as our FR8ZZ-HexHD Bearing.

The AndyMark West Coast Drive Bearing Block Kit also includes mounting geometry for components that utilize 2" and 1.875" bolt circles, such as motors, gearboxes, sprockets, hubs and gears. This makes this product great for many uses outside of your drivetrain, such as a robust interface to make a rotary arm, or an easy-to-use mounting interface for motors to power your mechanisms. The bearing plate is also 2" wide, making it perfect to keep two 20DP gears (of which the total teeth add up to 80,) meshed together.

Items Included

• 2 - WCD Bearing Block (am-4560)
• 4 - 10-32 Nylock Nut (am-1042)
• 4 - 10-32 x 1.5in Socket Head Cap Screw (am-1014)

Specifications

• Block Height: 0.45 in.
• Block Length: 2.88 in.
• Block Material: Aluminum
• Block Width: 2.00 in.
• Weight: 0.33 lbs

Documents

Layout Print(s)

am-4576 WCD Bearing Block Kit.pdf

am-4560 WCD 1.125 Bearing Block REV 2.pdf

CAD File(s)

am-4576 WCD Bearing Block Kit.STEP

am-4560 2x1 WCD 1.125 Bearing Block REV2.STEP

The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

Product Usage:
Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
• Diameter: 2 in., 4 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
• Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU, Polycarbonate
• Weight: 0.23lb, 0.1lb
• Width: 1 in.

Documents

Layout Print(s)

am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

am-3156 2IN 8mm Stealth Wheel REV3.PDF

am-3436 2in 375Hex Stealth Wheel REV3.PDF

am-3155 2in 500Hex Stealth Wheel REV3.PDF

am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

am-2648 4IN 8mm Stealth Wheel REV5.PDF

am-3435 4in 375Hex Stealth Wheel REV3.PDF

am-2647 4in 500Hex Stealth Wheel REV3.PDF

CAD File(s)

am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

am-3156 2IN 8mm Stealth Wheel.STEP

am-3436 2IN 375Hex Stealth Wheel REV2.STEP

am-3155 2IN 500Hex Stealth Wheel REV2.STEP

am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

am-2647 4inWheel 500 Hex REV2.STEP

am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

am-2648 4inWheel 8mm Hub REV2.STEP
