This item can only be purchased in multiples of 25

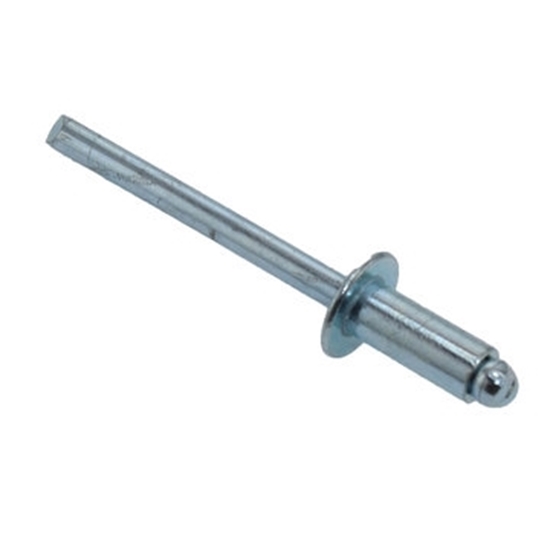

These blind steel rivets are a perfect, strong choice for creating frames when using our 1in. Gussets paired with up to .125" wall aluminum tubing. These steel rivets won't let you down when you need them most!
#10-32 x 0.5 in. long Socket Head Cap Screw
Specifications:
Must be ordered in mulitples of 25
Statistics:
We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.
On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.
Layout Print(s)
am-3860 90 Gusset REV2.PDF
am-4158 1IN Tee Gusset.PDF
am-4159 1IN Quad Gusset.PDF
am-4160 1IN 30deg Gusset.PDF
am-4161 1in 45deg Gusset.PDF
am-4162 1in 60deg Gusset.PDF
am-4163 1in 120deg Gusset.PDF
am-4164 1in 135deg Gusset.PDF
am-4165 1in 150deg Gusset.PDF
am-4166 1IN Sport Double Bearing Mount.PDF
am-4167 1IN 57Sport Side Mount Gusset.PDF
am-4168 1IN Bearing Side Mount Gusset.PDF
CAD File(s)
am-3860 90 Gusset REV2.STEP
am-4158 1IN Tee Gusset.STEP
am-4159 1IN Quad Gusset.STEP
am-4160 1IN 30deg Gusset.STEP
am-4161 1in 45deg Gusset.STEP
am-4162 1in 60deg Gusset.STEP
am-4163 1in 120deg Gusset.STEP
am-4164 1in 135deg Gusset.STEP
am-4165 1in 150deg Gusset.STEP
am-4166 1IN Sport Double Bearing Mount.STEP
am-4167 1IN 57Sport Side Mount Gusset.STEP
am-4168 1IN Bearing Side Mount Gusset.STEP
This is the "500EX Hex Hub" the bore is a 1/2" Hex Hole. It is a slightly different version of the 500 Hex Hub. It is manufactured differently, as it is extruded. Also, there is a 1.124" diameter boss on each side of the hub flange, providing a location for 1.125" bore flat sprockets. Are you having a hard time keeping your sprocket concentric with your hub? This hub is the trick. This is the hub featured in the 2014 and 2015 Kit of Parts Drive Chassis and fits all AndyMark wheels. Specifications:
These aluminum box extrusions are robust and lightweight solutions for custom robot frames, superstructures and mechanism construction. Made to all of your favorite English sizes, the classic 2x1 thin wall tubing is now joined by its thicker-walled counterpart. We have also introduced two thicknesses of 1x1 sizes that teams know and love to build their medium-sized mechanisms.
For smaller mechanisms, we recommend using our 5/8 square box tube that is also compatible with our S3 line of brackets and gussets.
Available Sizes:
Be sure to all check out our Gussets as they work wonderfully with all of these wonderful extrusions.
am-3214 2x1x0625 6061-T6 wall tubing.PDF
am-4203 1x1x063 wall tubing.PDF
am-4204 1x1x0.125 wall tubing.PDF
am-4205 2x1x0.125 wall tubing.PDF
am-3214 2x1x0625 wall tubing.STEP
am-4203 1x1x0625 wall tubing.STEP
am-4204 1x1x0.125 wall tubing.STEP
am-4205 2x1x0.125 wall tubing.STEP
This is the 8 in. SmoothGrip wheel. In 2010, the Gray 80A Durometer version was provided in the FRC Kit of Parts under the name "FIRST Wheel". No bearings are included.
New for 2021, you can now select a Blue 50A Durometer for maximum traction, or a Black 60A Durometer option.
Usage With Axle and Hub:
Usage With Sprockets and Bearings:
am-0420 8in Rubber Treaded Wheel.STEP
am-0420 8in Smooth Grip Wheel.PDF
