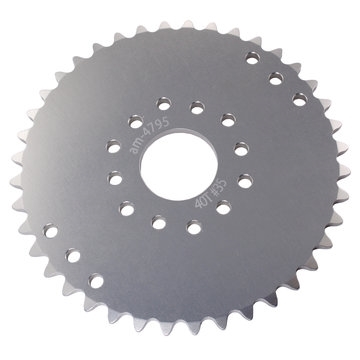

35 Series Bearing Bore Plate Sprockets 40 Tooth

Specifications

• Flange: Unflanged
• Inside Diameter: 0.375 in.
• Outside Diameter: 0.875 in.
• Overall Thickness: 0.281 in.
• Seal Type: Shielded
• Style: Radial
• Weight: 0.03 lbs
• Width: 0.281 in.

Documents

Layout Print(s)

am-0516 0375IN ID bearing, shielded (R6ZZ) REV2.PDF

CAD File(s)

am-0516 0.375'' id bearing, shielded (R6ZZ).STEP

This is a 1/4 in. round bore bearing that is unflanged. The Shielded Ball Bearing is a great way to make things spin fast!

This is a 1/4 in. round bore bearing that is flanged. The Shielded Ball Bearing is a great way to make things spin fast!

3/8" id shielded, flanged ball bearing

Specifications:

• Inside Diameter: 0.375 inch
• Outside Diameter: 0.875 inch
• Flange Thickness: 0.062 inch
• Overall Thickness: 0.280 inch
• Weight: 0.026 pounds
• Material: Steel

#35 Connecting Link (Master Link)

Specifications:

• Material: Steel
• Style: Roller Chain - Spring Clip
• Type: Connecting Link
• Size: #35
• Pitch: 0.375 inch
• Weight: 0.01 lbs

Specifications

• Bore: 0.252 in. [6.4 mm] Round
• Inside Diameter: 0.252 in. [6.4 mm]
• Length: 2.750 in. [69.9 mm] (2-3/4)
• Material: Nylon
• Outside Diameter: 0.625 in.

0.75" x 0.85", nylon, 0.75" od, 0.38" id, 0.85" thick, white

Specifications:

• Material: White Nylon Plastic
• Inside Diameter: 0.38 inch
• Outside Diameter: 0.75 inch
• Thickness: 0.85 inch
• Weight: 0.0014 pounds

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound

Each hub now has a "flower" pattern that fits and keys into our 42T 5 mm HTD Pulley, which means you are no longer constrained to our legacy 500EX Hex Hub for compatibility with this pulley. Every hub still maintains a closed-profile hole for maximum strength. Every shaft hub has been designed with bearing bosses on both sides that have been sized appropriately for the mating bearings that would pair with the bore through the hub, which means you can run each hub right against a bearing with no need for extra spacers. All of these hubs are also made from 7075-T6 aluminum, which is much stronger than the previously used 6061-T6, 6005, and 6105 alloys from our older designs. Where possible, the shoulder on shaft hubs was reduced to 7/8" in diameter for an easier fit with our molded plastic wheels, while still maintaining a precise 1.125" diameter boss for locating in wheels, sprockets, gears, and more.

The holes are evenly spaced on a 1.875 in. circle and 0.201 inches in diameter. That's a perfect size for #10 bolts!

Learn how to attach these hubs to AndyMark wheels by watching this video!

#35 Half Link. Also known as #35 Offset Link.

Specifications:

• Material: Steel
• Style: Roller Chain with interted pin
• Type: Half Link
• Size: #35
• Pitch: 0.375 inch
• Weight: 0.01 lbs
