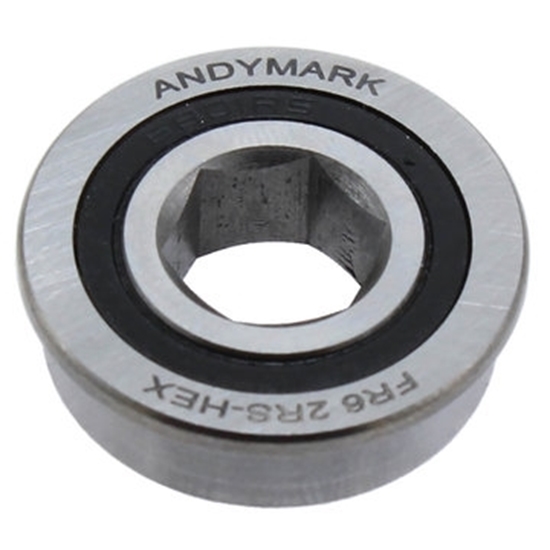

3/8 in. Hex ID 7/8 in. OD Sealed Flanged Bearing (FR62RS-Hex)

This new custom designed collar clamp has been designed specifically with FIRST Robotics Competition teams in mind. This product is Out of Stock until Mid March

#25 Connecting Link (Master Link)

Specifications:

• Material: Steel
• Style: Roller Chain - Spring Clip
• Type: Connecting Link
• Size: #25
• Pitch: 0.250 inch
• Weight: 0.01 lbs

This novel style of collar clamp is split into two pieces so that it can be attached without removing any shafts. The bore is a 3/8" hex hole. The flats on the perimeter allow for the collar clamp to be held in position or turned for better assembly control.

This clamp has been designed and fabricated by BaneBots, and proudly sold through AndyMark.

Specifications:

• Material: Aluminum
• Bore: hex hole, 3/8 inch
• Outside Diameter: 0.94 inch
• Thickness: 0.375 inch
• Width Across Flats: 7/8 inch
• Weight: 0.023 pound
• Clamping Screws: #6-32 x 1/2" long (qty. 2)

Plastic spacers are included with this clamp, positioned between the two halves. These are to be removed before usage.

HiGrip wheels provide superior traction for robot movement. HiGrip wheels feature an aggressive tread pattern providing maximum transfer of gearbox power to the ground. A robust polycarbonate core means these wheels are up to the challenge for high impact and speed applications. Varying durometers mean you can choose just how grippy these wheels can be. White or 77A durometer HiGrip wheels have a long life and provide good traction. Black or 60A durometer HiGrip wheels have an intermediate life and higher grip than white. Blue or 60A durometer HiGrip wheels provide the most traction and will wear quickly as a result. The bolt pattern and bore of these wheels allow for convenient bearing placement and easy attachment to other motion parts such as sprockets and pulleys.

Product Usage:
Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product. This link will allow you to check which materials are okay to use with what adhesives, http://bit.ly/loctitematerialcheck

Specifications:

• Diameter: 4" or 6"
• Body Material: Polycarbonate
• Tread Material: Thermoplastic Polyurethane
• Durometer: 77A (Grey), 60A (Black), 50A (Blue)
• Bore: 0.95", with bearing pockets of 1.124" diameter x 0.25" deep on both sides
• Bolt Circle: Six holes (0.17" diameter) on a 1.875" diameter bolt circle
• 77A Carpet CoF: 0.95-1.0 Static
• 60A Carpet CoF: 0.77 Static
• 50A Carpet CoF: 0.97 Static
• 4" Wheel Load Capacity: 100 Pounds
• 6" Wheel Load Capacity: 90 Pounds

Usage:
Use #10-24x3/4 thread forming screws to attach sprockets or hubs to this wheel. Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product. This link will allow you to check which materials are okay to use with what adhesives, http://bit.ly/loctitematerialcheck

With Axle and Hub:

• If you wish to drive this wheel with an Axle and Hub, you can pick your hub by fitting any of the AndyMark hubs (not included) to this wheel. If this is your choice, then no bearing is needed. Use #10-24x3/4 thread forming screws to fasten a hub to this wheel.

With Sprocket:

• If you wish to drive this wheel with a sprocket, then the sprocket needs to be attached to the side of the wheel, and two ball bearings need to be pressed into the wheel (one on each side). The ball bearing must have a 1.125" od. For a 1/2" id, use am-0181 or am-0029. For a 3/8" id, use am-0209. Use #10-24x3/4 thread forming screws to fasten the sprocket to the wheel.

With Bearings:

• To press bearings into this wheel (for a free spinning wheel or for use with a sprocket), two ball bearings need to be pressed into the wheel (one on each side). The ball bearing must have a 1.125" od. For a 1/2" id, use am-0181 or am-0029. For a 3/8" id, use am-0209.

3/8" id shielded, flanged ball bearing

Specifications:

• Inside Diameter: 0.375 inch
• Outside Diameter: 0.875 inch
• Flange Thickness: 0.062 inch
• Overall Thickness: 0.280 inch
• Weight: 0.026 pounds
• Material: Steel

Tired of hex clamp collars that cost an arm and a leg? Tired of stripping out the set screw on your clamp collar? Need to add a collar in an assembly and don't want to remove everything from your hex shaft?

Me too! I've ran into all of the above scenarios multiple times building multiple robots. These collars are the holy grail -

• split so they can easily be added or removed
• lightweight 6061 aluminum
• .5 oz (.031 lbs) for one hex collar
• uses two 8-32 socket head cap screws that require a 9/64" allen wrench
• $4.00 per collar, sold in 5 packs
• anodized black for awesomeness

General Dimensions:

• When clamped on 1/2 inch hex shaft - approx 1.2 inch outer diameter
• 0.40 inches wide
• STEP file CAD Model Available

Aluminum Clamp On Shaft Collar, 3/8" Hex Bore

This is a wide, heavy duty, collar clamp.

Specifications:

• Material: Aluminum
• Diameter: 0.875 - 1"
• Thickness: 0.3 - 0.34"
• Weight: 0.02 Lbs

Each hub now has a "flower" pattern that fits and keys into our 42T 5 mm HTD Pulley, which means you are no longer constrained to our legacy 500EX Hex Hub for compatibility with this pulley. Every hub still maintains a closed-profile hole for maximum strength. Every shaft hub has been designed with bearing bosses on both sides that have been sized appropriately for the mating bearings that would pair with the bore through the hub, which means you can run each hub right against a bearing with no need for extra spacers. All of these hubs are also made from 7075-T6 aluminum, which is much stronger than the previously used 6061-T6, 6005, and 6105 alloys from our older designs. Where possible, the shoulder on shaft hubs was reduced to 7/8" in diameter for an easier fit with our molded plastic wheels, while still maintaining a precise 1.125" diameter boss for locating in wheels, sprockets, gears, and more.

The holes are evenly spaced on a 1.875 in. circle and 0.201 inches in diameter. That's a perfect size for #10 bolts!

Learn how to attach these hubs to AndyMark wheels by watching this video!

This is a 1.5" thick 45A durometer urethane wheel with a half inch hex bore. Great for accelerating game objects or for when low compression is desired. 4 inch outer diameter.

The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

Product Usage:
Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
• Diameter: 2 in., 4 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
• Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU, Polycarbonate
• Weight: 0.23lb, 0.1lb
• Width: 1 in.

Documents

Layout Print(s)

am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

am-3156 2IN 8mm Stealth Wheel REV3.PDF

am-3436 2in 375Hex Stealth Wheel REV3.PDF

am-3155 2in 500Hex Stealth Wheel REV3.PDF

am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

am-2648 4IN 8mm Stealth Wheel REV5.PDF

am-3435 4in 375Hex Stealth Wheel REV3.PDF

am-2647 4in 500Hex Stealth Wheel REV3.PDF

CAD File(s)

am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

am-3156 2IN 8mm Stealth Wheel.STEP

am-3436 2IN 375Hex Stealth Wheel REV2.STEP

am-3155 2IN 500Hex Stealth Wheel REV2.STEP

am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

am-2647 4inWheel 500 Hex REV2.STEP

am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

am-2648 4inWheel 8mm Hub REV2.STEP
