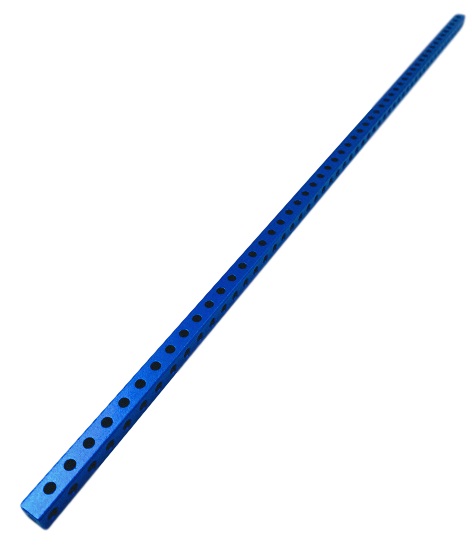

The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
May be used with 6mm D-Shape Shaft to secure wheels in their position.
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
Type: Metal Brush Motor Horn Gear Spline: 25T (5.9mm) Size: 40mm x 20.1mm x 38.3mm Weight: 65g Maximum Speed: 62RPM at 6V Stall Torque: 20kg.cm at 6V Voltage: 6-7 4V Cable: 22AWG, 75cm
The T Bracket is perfect for connecting two or three channels together. Each side is 48mm wide to fit on the U Channel, low profile channel or other brackets. The overall size is 144mm x 96mm
Can be used with 6mm D-Shaft Axel and 6mm shaft DC motor.
Specifcations:
The 6mm Shaft hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.
The 90 Degree Bracket is perfect for connecting two channels pieces at 90 angle from each other. Each side is 48mm wide to fit perfectly on the channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
