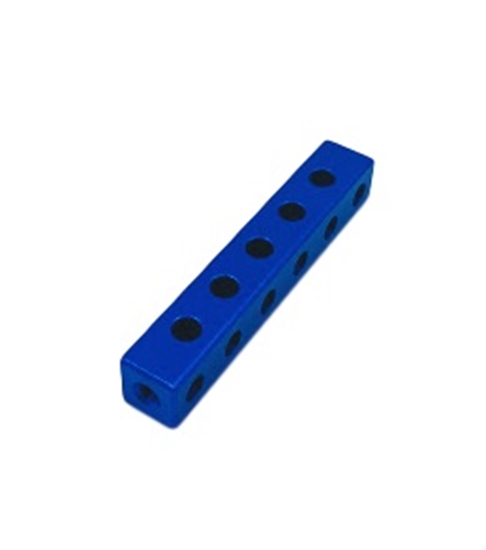

The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.
This is a Trilobe, thread forming, or thread rolling screw, ideal for applications where the screw is being threaded into plastic or metal. A flat washer is part of the 5/16 hex head, providing more surface area contact than a regular hex head. The increased bearing area decreases the likeliness of crushing mating surfaces. Trilobe, or Thread Rolling, screws have a blunt tapered point that requires a pre-drilled or punched hole; eliminates chips and permits replacement with standard screw. Zinc plating froms a zinc carbonate film that greatly retards the corrosion rate in a normal atmosphere, which is similar to the aluminum oxide film that forms on aluminum that accounts for its low corrosion rate. Product Overview:
1/2 inch external retaining ring, used in the RAW Box. Specifications:
This retainer clip is used to hold objects (such as gears) in place on shafts. Example: This product can be used to hold a gear onto a CIM motor shaft. Specification:
The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
The Studica Flat Bracket is a very strong 3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The 100mm (4") Flex Wheel can be used for intake systems and conveyors.
This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load. This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.
