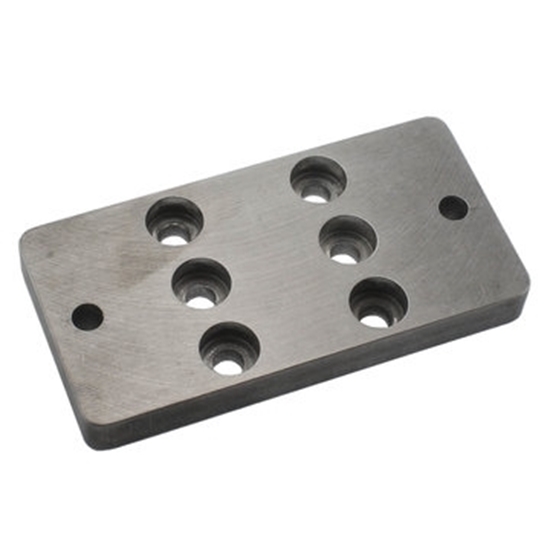

Use this bracket to mount the side of a blue Sport Gearbox within your robot. The bracket extends wider than the body of the gearbox allowing for separate screws to mount the gearbox to the bracket and the bracket to the robot. You can even use these separate screw holes to match-drill the final mounting holes through the bracket to your robot. All holes are sized for 10-32 bolts.
Layout Print(s)
am-4169 Sport Side Flange Mount.PDF
CAD File(s)
am-4169 Sport Side Flange Mount.STEP
