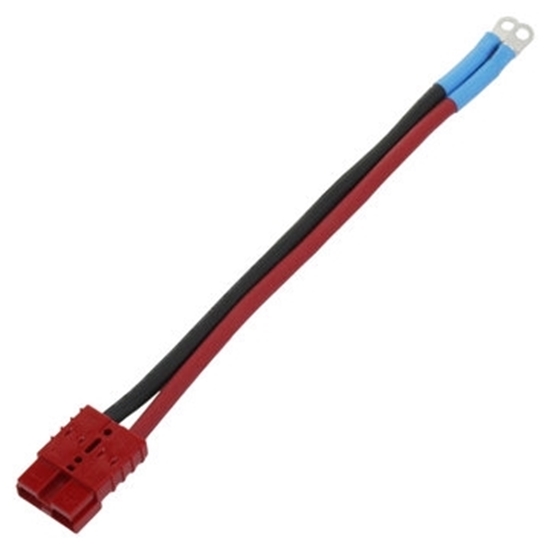

6 Gauge 12 Inch Battery Cable - Flexible EPDM Insulation

These plugs are intended to indicate batteries that are charged. They fit into an Anderson Power Products (APP) SB-50B Connector.

Usage:Batteries not fully charged should not have a plug inserted into their APP connector. Instead they should be put on charge.

Specifications

• Material: Plastic
• Size: 2.05 in. 1.48 in. 0.24 in.
• Weight: 0.014 lbs

This is a heavy-duty compression lug from BURNDY for 06 AWG wire. This compression log can be easily crimped with the Cable Lug Crimping Tool.

Specifications

• Gauge: 06 AWG
• Hole Size For Stud: 0.25 in.
• Material: Copper
• Overall Length: 2.03 in.
• Tongue Width: 0.48 in.
• Weight: 0.01 lbs
• Wire Strip Length: 1.18 in.

Specifications:

• Inner Diameter: 0.219"
• Outer Diameter: 0.500"
• Finish: Zinc
• Bolt Size: #10
• Material: Steel
• Nominal Thickness: 0.046"

This item can only be purchased in multiples of 25

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: #10-32
• Thickness: 0.249"
• Thread: Fine
• Thread Size: 32
• Type: Nylon Insert Lock Nut
• Wrench Size: 3/8"

The MK ES17-12, 12 Volt, 18 amp-hour sealed lead acid battery with nut and bolt connector has proven to be a trustworthy power source for many FIRST Robotics Competition robots.

The batteries will be packed within a 7"x7"x7" box (aka: interior box). A 3/4" layer of closed-cell foam will be packed around the interior box, within a 9"x9"x9" box. The entire weight of this double box packing assembly will be approximately 29 pounds.

Two (2) batteries are shipped within one box for this price.

Anderson Power Products Connector with 2 contacts.

Specifications:

• Material (APP Connector): Red Plastic
• Weight: 0.060
• Mounting holes: 0.15" diameter, 3/4" apart

Included Hardware:

• One - SB-50A red plastic connector
• Two - Anderson Power Products crimp contacts (sized for 6 gauge wire)

The MINI® Fuse is the standard for vehicle circuit protection. Its miniature design meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINI® Fuse of recommended choice for protection.

This mini fuse can be used in our Power Pole Distribution Board (am-3699), as well as a replacement in the Power Distribution Panel (am-2856)

This Battery Cable Hardware kit is all you need to create secure connections for one of your am-3062 batteries.

Included Hardware:

• One - 2 Inch Long 4 AWG Red Shrink Tube
• One - Battery Sticker
• Two - 10-32 Nylock Nut (am-1042)
• Two - 10-32 x 0.625 Inch Socket Head Cap Screw (am-1007)
• Two - 2" Long 0.75 Inch Diameter Black Shrink Tube
• Two - #10 Lock Washer (am-1148)
• Four - #10 Washer (am-1026)

Note - this kit is meant for securing your battery cables but does not include any cables. We recommend am-0009 or am-3777 for use with this kit.

This is a quick and reliable compact connector for flexible conductors. Splicing has never been easier. Lift the orange lever, and insert the conductor, close the lever. The lever clicks as it is lowered, actuating the CAGE CLAMP®, for superior connectivity. This tool-free connection and disconnection makes the connection simple to create and alter in the future.

The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 3 in. and 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.
