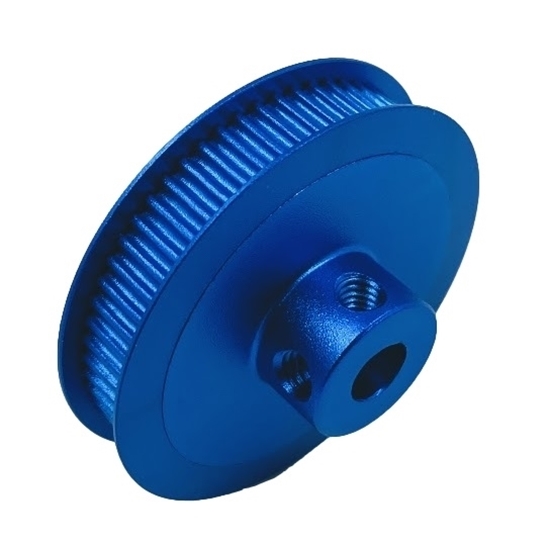

60 Tooth GT2-6mm Timing Belt Pulley

PRE-ORDER Only shipping January 2023

Φ20.0mm*8.0mm thick
2*M3 thread for M3 SHCS
on the clamp side
Φ6.0mm D hole
AL6061-T6

Φ29.0mm*16.0mm thick
6*M3 thread tapping through
(including 2*M3 thread for M3 SHCS)
Φ6.0mm D hole
AL6061-T6

The 40 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 40 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

GT2-6mm Smooth Idler Pulley, H Type, w/3mm Inner Bore Bearing

The 20 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 20 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Specifications:

Type:                             Metal Brush Motor
Horn Gear Spline:       25T (5.9mm)
Size:                               40mm x 20.1mm x 38.3mm
Weight:                          65g
Maximum Speed:        62RPM at 6V
Stall Torque:                 20kg.cm at 6V
Voltage:                         6-7 4V
Cable:                             22AWG, 75cm

• Step File

The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

The Studica 30T Servo 25T Spline Gear is used with the Studica Multi-Mode Smart Servo or Studica Multi-Mode Smart Servo 200.

Specifications:

• Material: Steel Hardened, Zinc plated
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 12mm
• Step File
