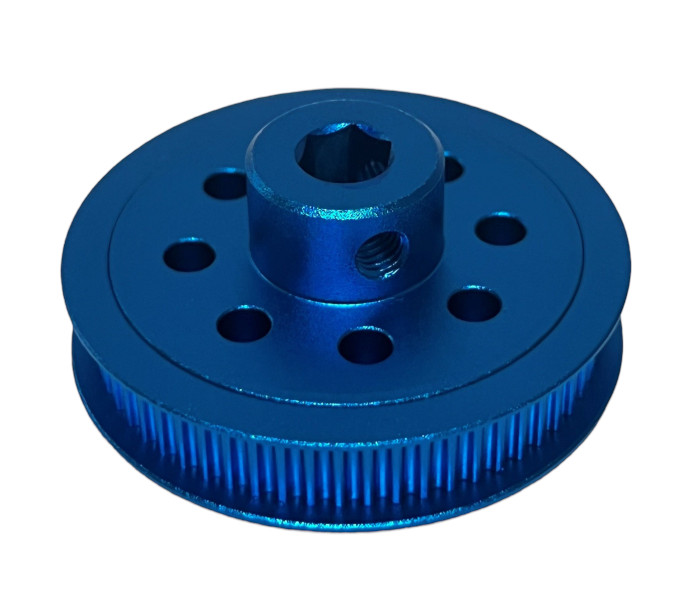

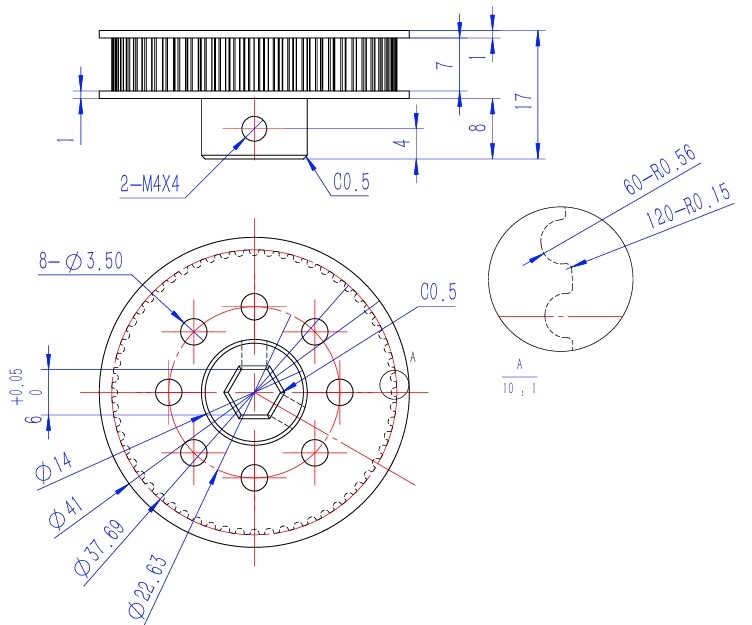

60 Tooth GT2 6mm Hex-Shaft Timing Belt Pulley

GT2-6mm Smooth Idler Pulley, H Type, w/3mm Inner Bore Bearing

The GT2-6mm Timing Belt Clamp w/Set Screw is used with all the GT2 belts.

Specifications:

• Step file

The Studica Robotics Hex-Shaft Coupling has an ID of 6mm and an OD of 12mm.  It can be used with the 6mm Hex-Shaft Axle and a 6mm shaft DC motor.

The Studica Robotics 20 Tooth GT2-6mm Timing Belt Hex-Shaft Pulley can be used with any of the GT2 belts.

The Studica Robotics Clamping 6mm Hex-Shaft Hub is used with flex and drive wheels and is improved for the absolute strongest hold.

The Studica Robotics Light Weight 6mm Hex-Shaft Hub (2 pack) are used with 6mm Hex shafts. They have a 5mm set screw for tight clamping and seven M3 tapped mounting holes.

This GT2 (also called 2GT) timing belt has a 2mm Pitch, 6mm width, and open 1000mm in length. Use any of the GT2 pulleys from Studica and the clamp kit.

Specifications:

• type: GT2 open-loop
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

The 6mm round ID Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

• Quantity: 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm
• Step File

The 20 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 20 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

The 30 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 30 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File
