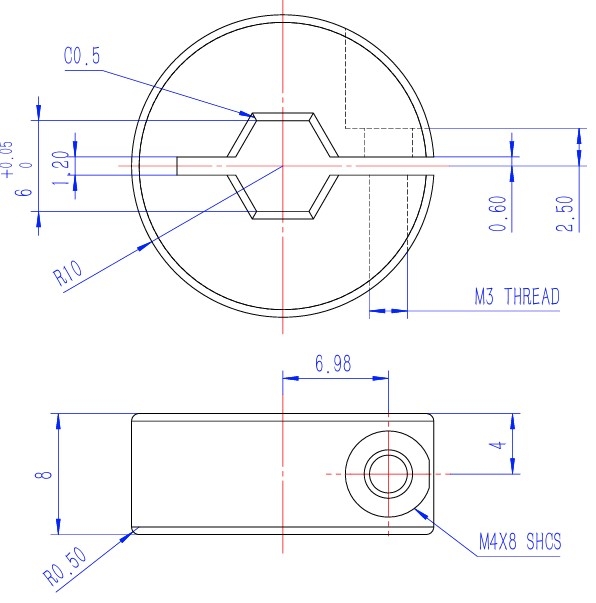

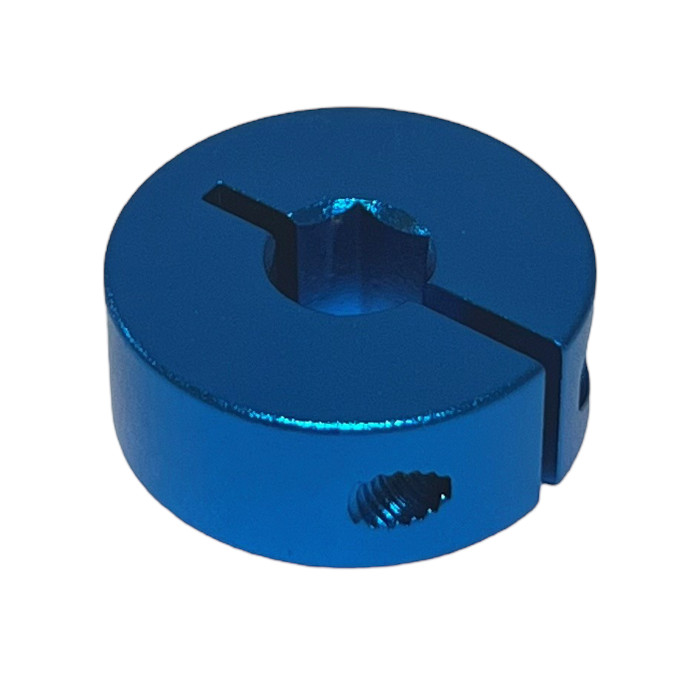

6mm Hex-Shaft Collar Clamp

The Intake Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Used with the Silicone Rubber Tubing #76410

Specifications:

• Main piece
  • hex width: 20.78mm*10.0mm thick
  • 6*M6 tapped holes
  • 1*M4 tappped hole for M4 set screw
  • 6.0mm Diameter D Hole
  • Material AL6061-T6
  • Φ7.5mm*14.0mm
• Pins
  • 6PCS in a pack
  • M6*4.0mm thread
  • Material SS303
• Step file

Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 6.35mm
• Hole Diameter: 14mm
• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 35mm length
• 6mm OD
• 5.5mm to flat
• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 432mm length
• 6mm OD
• 5.5mm to flat
• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 96mm length
• 6mm OD
• 5.5mm to flat
• Step File

The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 40mm
• Length - 96mm
• Step File

The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Step File

Includes,

• 2 - M3 x 8mm Socket Head Cap Screw (pack of 100)  76200-100
• 2 - M3 x 10mm Socket Head Cap Screw (pack of 100)  76201-100
• 2 - M3 x 12mm Socket Head Cap Screw (pack of 100)  76202-100
• 2 - M3 x 10mm Button Head Cap Screw (pack of 50)  76203-50
• 3 - M3 Kep Nut (pack of 100)  76204-100
• 2 - M3 Nyloc Nut (pack of 100)  76205-100
• 1 - M3 x 30mm Socket Head Cap Screw (pack of 50)  76206-50
• 1 - M3 x 20mm Socket Head Cap Screw (pack of 50)  76209-50
• 1 - 2.5mm Hex Ball End Screwdriver  70142
• 1 - Combination Wrench 5.5mm  70145

Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.

Specifications:

• Material: Steel
• Number of teeth: 30
• Set of 2 for 1-1 drives
• Step File
