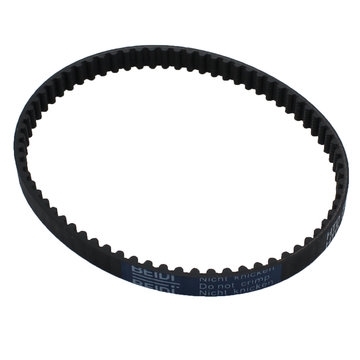

    9 mm Wide 5 mm Pitch HTD Timing Belt 70 Tooth

    These are all of our 9 mm wide 5 mm pitch HTD synchronous timing belt offerings. All of these belts are a composite of flexible rubber with a fiberglass tensile member throughout. Synchronous timing belts, also known as a toothed belt or synchronous belt, are designed to eliminate slippage and keep any number of objects rotating at a constant rate. We offer both genuine Gates brand belts as well as lower-cost generic brand belts.

    # Pièce: am-4359
    $13,00
    1 en stock

    Current Belt Offerings

    Parts are organized by the following scheme: (Tooth Count - Trade Number - AndyMark part number)

    Gates Brand Belts

    • 48T - 240-5M-09 - am-3274
    • 60T - 300-5M-09 - am-4659

    Generic Brand Belts

    • 40T - 200-5M-09 - am-3272
    • 45T - 225-5M-09 - am-3273
    • 48T - 240-5M-09 - am-3662
    • 70T - 350-5M-09 - am-4359
    • 93T - 465-5M-09 - am-3378
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent

    Current Belt Offerings

    Parts are organized by the following scheme: (Tooth Count - Trade Number - AndyMark part number)

    Gates Brand Belts

    • 48T - 240-5M-09 - am-3274
    • 60T - 300-5M-09 - am-4659

    Generic Brand Belts

    • 40T - 200-5M-09 - am-3272
    • 45T - 225-5M-09 - am-3273
    • 48T - 240-5M-09 - am-3662
    • 70T - 350-5M-09 - am-4359
    • 93T - 465-5M-09 - am-3378
