90 Degree Gusset

This item can only be purchased in multiples of 25

Product Overview

These blind steel rivets are a perfect, strong choice for creating frames when using our 1in. Gussets paired with up to .125" wall aluminum tubing. These steel rivets won't let you down when you need them most!

Specifications

• Diameter: 3/16 in.
• Drill Size For Hole: #11
• Finish: Zinc
• Grip Range: 0.126-0.25 in.
• Head: Buttonhead
• Hole Size: 0.192-0.196 in.
• Length: 0.45 in.
• Mandrel Material: Steel
• Material: Steel
• Rivet Style: Blind
• Weight: 0.0094

Statistics:

• Material: Steel
• Coating: Zinc plated
• Thread: #10-32
• Length: 1-1/2 inch
• Head: Socket Head Cap Screw

Specifications:

• Material: Steel
• Coating: Zinc plated
• Thread: 1/4-20
• Length: 1/2"
• Head: Button Head Cap Screw

Must be ordered in mulitples of 25

This item can only be purchased in multiples of 25

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: #10-32
• Thickness: 0.249"
• Thread: Fine
• Thread Size: 32
• Type: Nylon Insert Lock Nut
• Wrench Size: 3/8"

This item can only be purchased in multiples of 25

#10-32 x 0.5 in. long Socket Head Cap Screw

Specifications

• Finish: Zinc
• Head: Socket Cap
• Length: 0.5 in.
• Material: Steel
• Thread: 10-32
• Weight: 0.1 lbs

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound

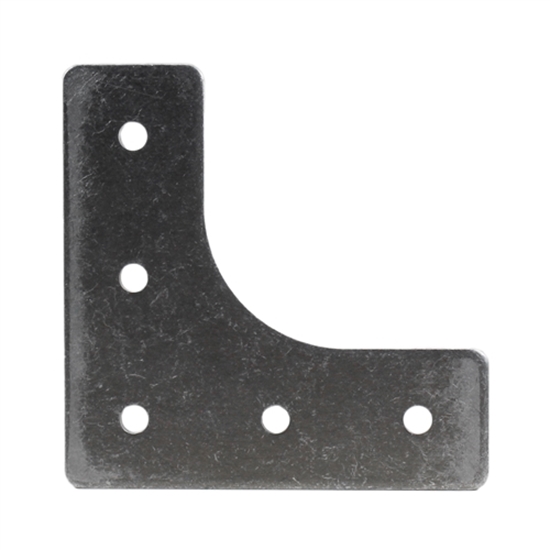

We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.

On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.

Specifications

• Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
• Material: 6061-T6 Aluminum
• Thickness: 0.125 in

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

Specifications:

• Material: Steel
• Coating: Zinc plated
• Thread: 1/4-20
• Width across hex: 7/16"
